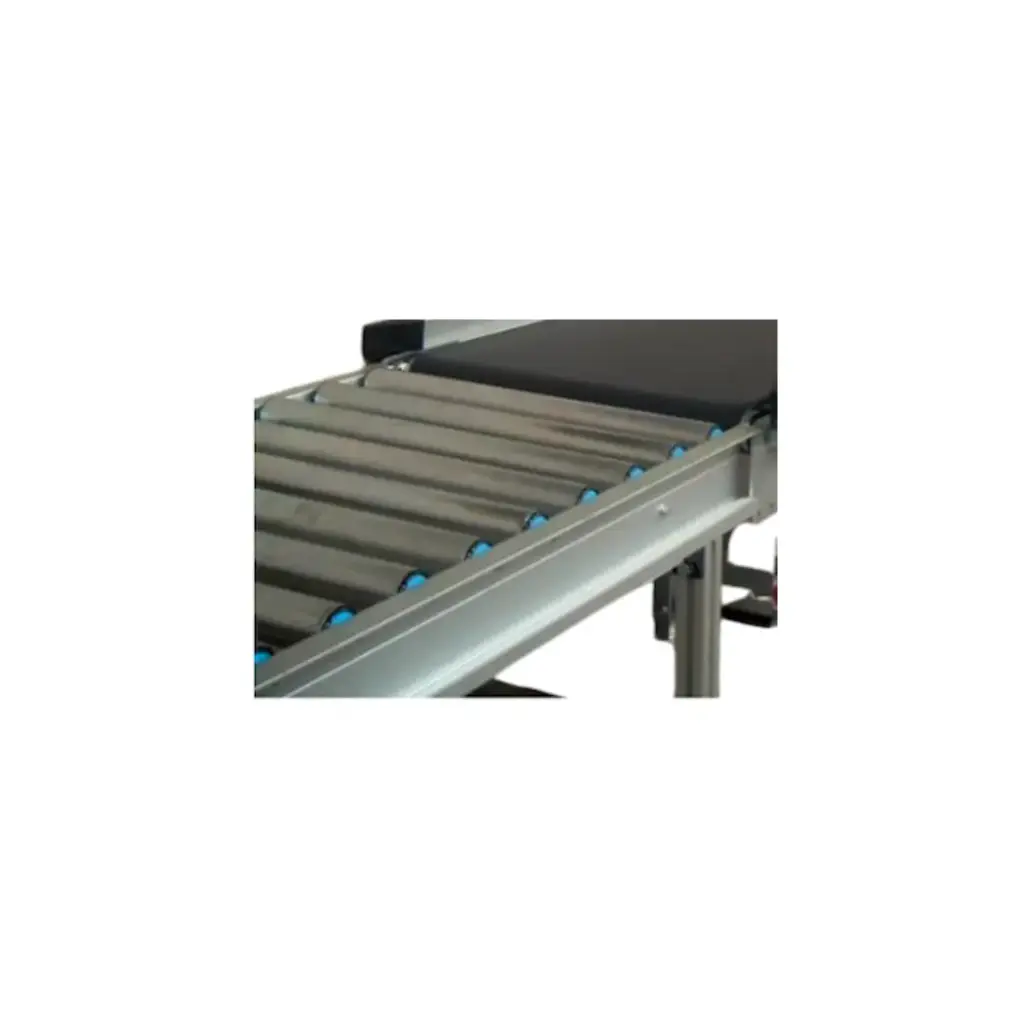

NON-DRIVEN ROLLER CONVEYOR 833mm inside frame x 1.5m long

Technical details:

Length: ​ ​ ​1.5 m

Rollers: ​ ​ ​Ø50.8 mm × 1.6 mm wall thickness mild steel tubing

Roller pitch: ​ ​100 mm

Shaft: ​ ​ ​mild steel electro-galvanised Ø12 mm round shaft × 860 mm ​ ​ ​ ​long

Shaft finish: ​ ​drill holes for locking wire

Roller length: ​830 mm over bearing

Cap end: ​ ​Con50 for 12 mm shaft

Frame: ​ ​​80 × 25 × 3 mm bent-up channel mild steel

Legs: ​ ​ ​38 mm mild steel square tubing with adjustable feet, locking ​ ​ ​ ​ ​bolts, and floor mounting plate

Roller positioning: 10 mm above frame

Elevation: ​ ​800 mm to top of roller

Finish: ​ ​​all electro-galvanized
