MINING HEAVY DUTY AIR-HYDRAULIC JACK 80T M80-31-S2
Technical data
- Capacity: 80 / 50 / 25 t (88.2 / 55.1 / 27.6 ton)
- Net weight: 163 kg | 359 lbs
- Working air pressure: 10–12 bar | 145–174 psi
- Air consumption: 600 nl/min

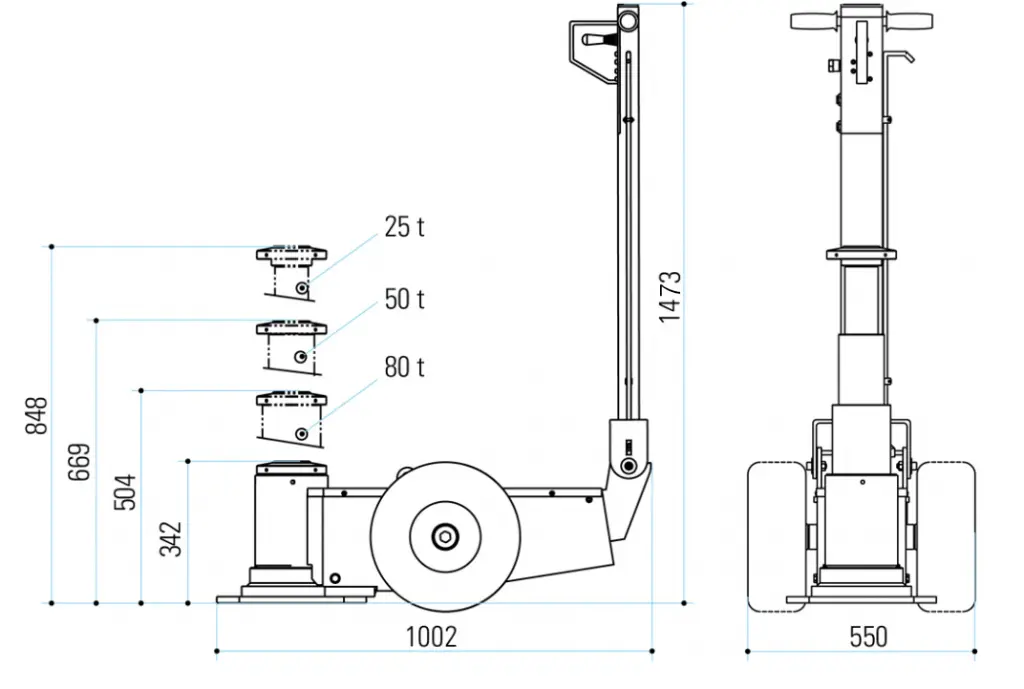

- Max height: 848 mm | 33.4 in.
- Min height: 342 mm | 13.5 in.
- Number of pistons: 3
- Stroke: 506 mm | 19.9 in.
Jack applications
- Trains
- Mechanical shovels
- Special vehicles
- Dumpers
- Tanks
- Bulldozers
- Lorry-mounted cranes
