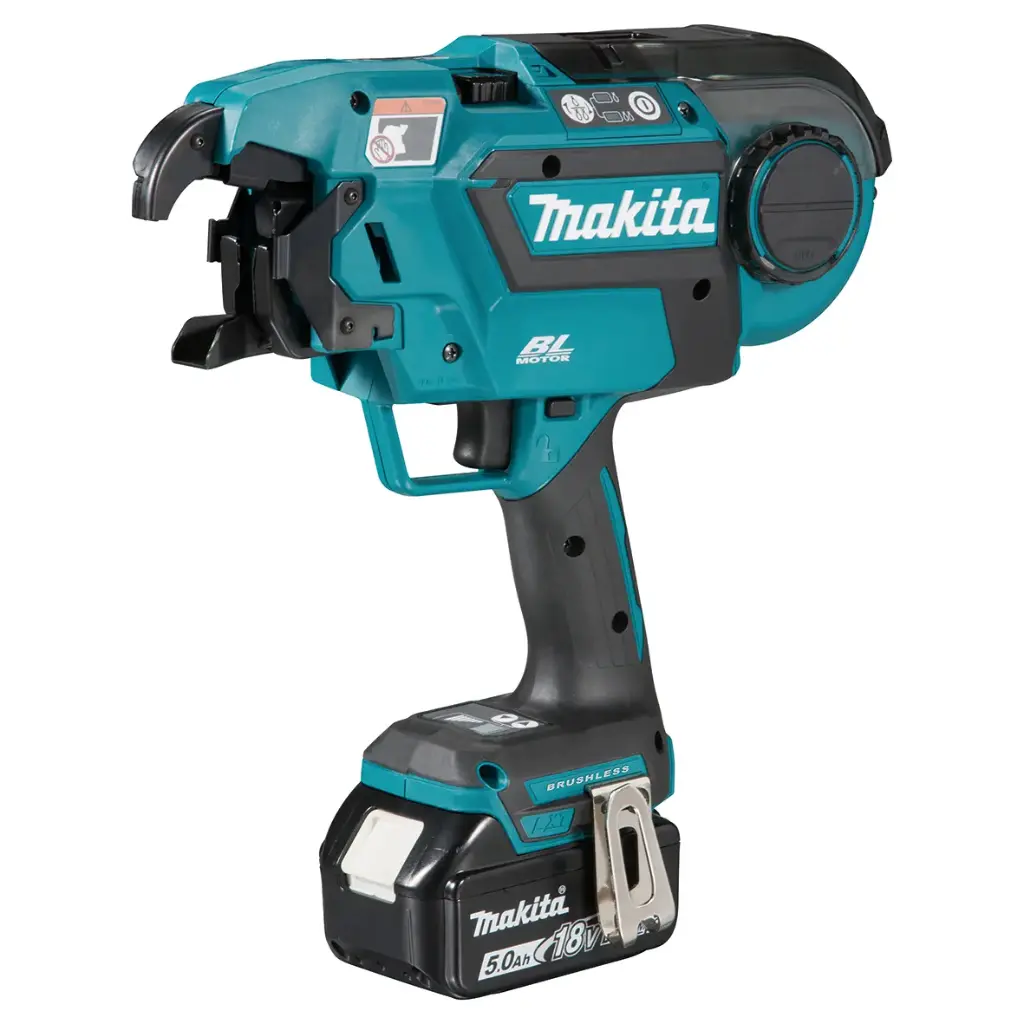

Makita DTR180Z Rebar Tying Tool (excl. battery & charger)

Product Details

Tying rebar can be done automatically in a various range of applications such as building concrete foundations
Operable by only one hand, allowing the other hand to be free to adjust the position of rebar
Continuous actuation mode for efficient continuous tying
Users can tie rebar by only pulling contact arm against rebars if they continuously hold the trigger
Users can also tie rebar by pulling the trigger as single actuation mode
According to the condition of tying material, tying strength can be adjusted in 6 stages
Compatible with18V LXT batteries
Water-resistance compatible with XPT
BL motor with high power to weight and size ratio
BL motor generates less heat buildup and is ideal for prolonged use in high production applications
BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
φ0.8 mm Annealed tie wire dedicated for DTR180
Tie wire reel can be replaced simply by opening Reel cover
On-tool storage of hex wrench: Hex wrench is supplied for maintenance of tie wire path
Main switch with auto power-off: Operation starts by pulling trigger after main switch is turned on
Ergonomically designed handle with sure grip provides increased comfort on the job

Max output	340 W
Tie wire	Dia. 0.8 mm
Applicable rebars	D10 x D10 – (D13 x 2) x (D13 x 2)
Wire tail height	21 mm (13/16″)
Twisting direction	Counterclockwise
Easy loading mechanism for tying wire	Yes
Nose width	14.0 mm (9/16″)
Vibration tying function	Yes
Trigger lock	Yes
Belt hook	Yes
Vibration level	2.5 m/s² or less
Vibration K factor	1.5 m/s²
Sound pressure level	78 dB(A)
Noise K factor	3 dB(A)
Dimensions (L x W x H)	w/ BL1830B / BL1850B / BL1860B: 304 x 93 x 318 mm (12 x 3-2/3 x 12-1/2″)
Net weight	2.3 – 2.6 kg (5.1 – 5.7 lbs.) – Battery dependent
