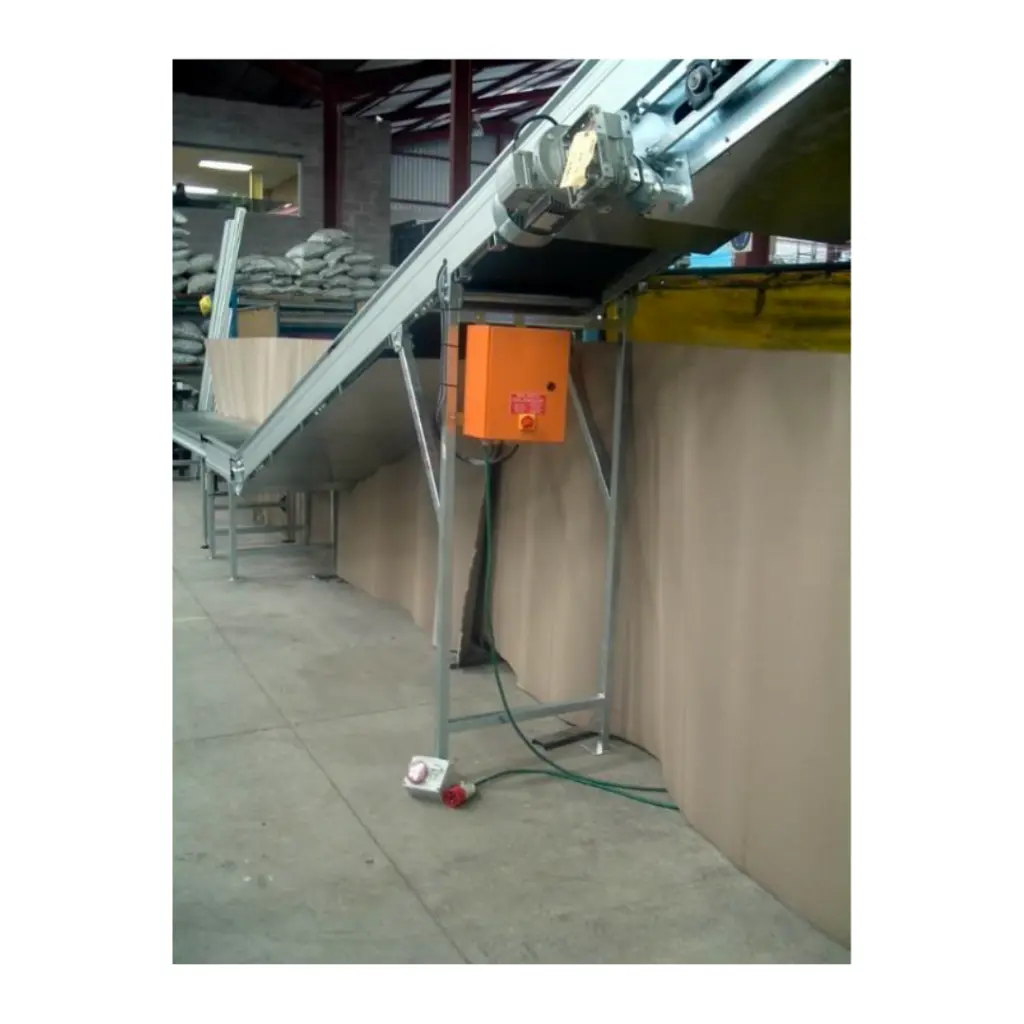

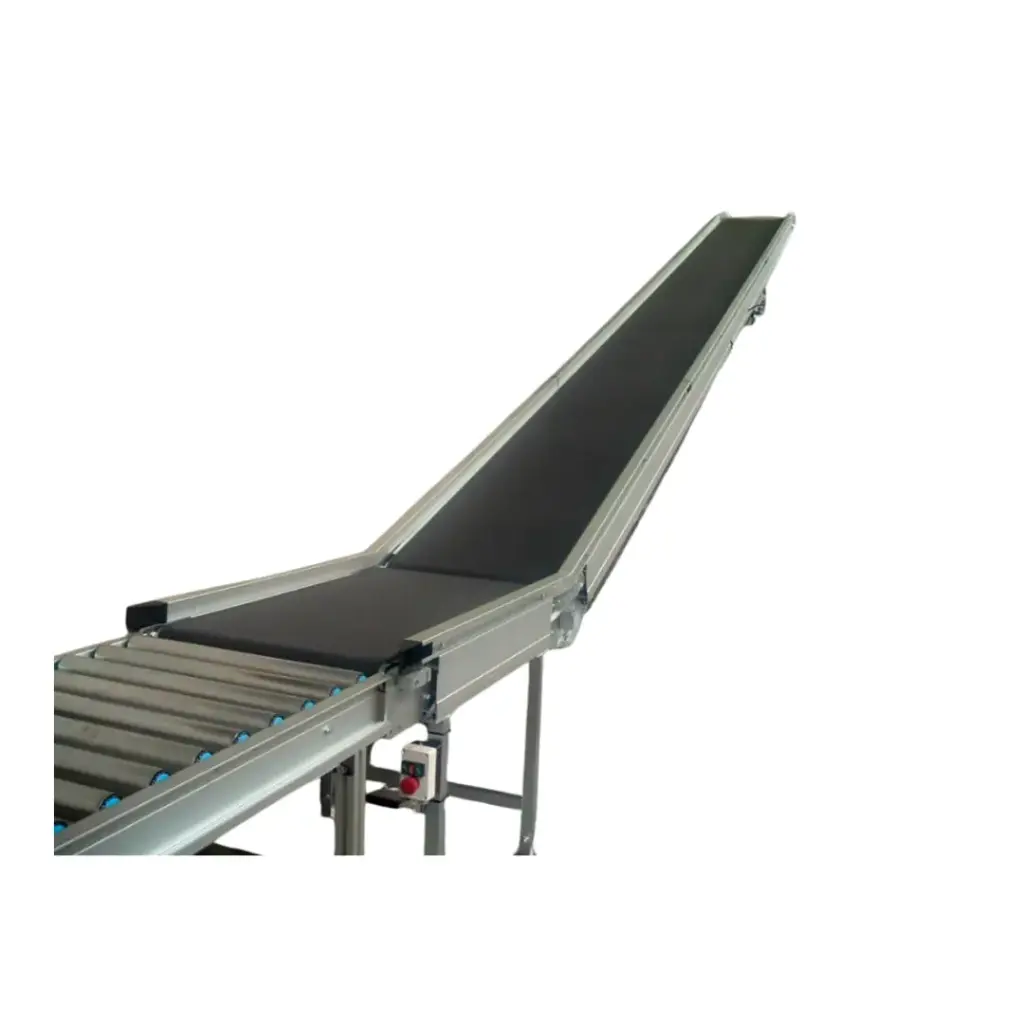

INCLINED BELT CONVEYOR 25° 3m with NON-DRIVEN ROLLER CONVEYOR
25° incline belt conveyor inclining to a 3m high mezzanine.
Technical details:
Conveyor lengths: 1 m horizontal, 7.1 m inclined section, and 1 m horizontal
Frame width: 923 mm over frame & 833 mm inside frame
Frame material: extruded aluminium sides and guides with zinc-plated mild steel mounting plates
Working height: 800 mm adjustable
Conveying angle: 25°
Legs: 38 mm zinc-plated mild steel square tubing
Motor: 1.5 kW Bonfiglioli, 3-phase
Belt speed: approximately 25 metres per minute
Belt type: 2-ply LG (longitudinally grooved) belt, 750 mm wide
Side guides: 50 mm high
Safety covers: mild steel electro-galvanized 1.6 mm sheet fastened underneath the conveyor from 0.8 m–2.1 m above floor height
Electrics:
➢ 1 × remote start/stop/ESTOP station located at the top of the incline conveyor
➢ Pull-rope ESTOP along the side of the conveyor
➢ Control panel mounted on conveyor
➢ Field wiring
NB: main power supply to the control panel is excluded.
