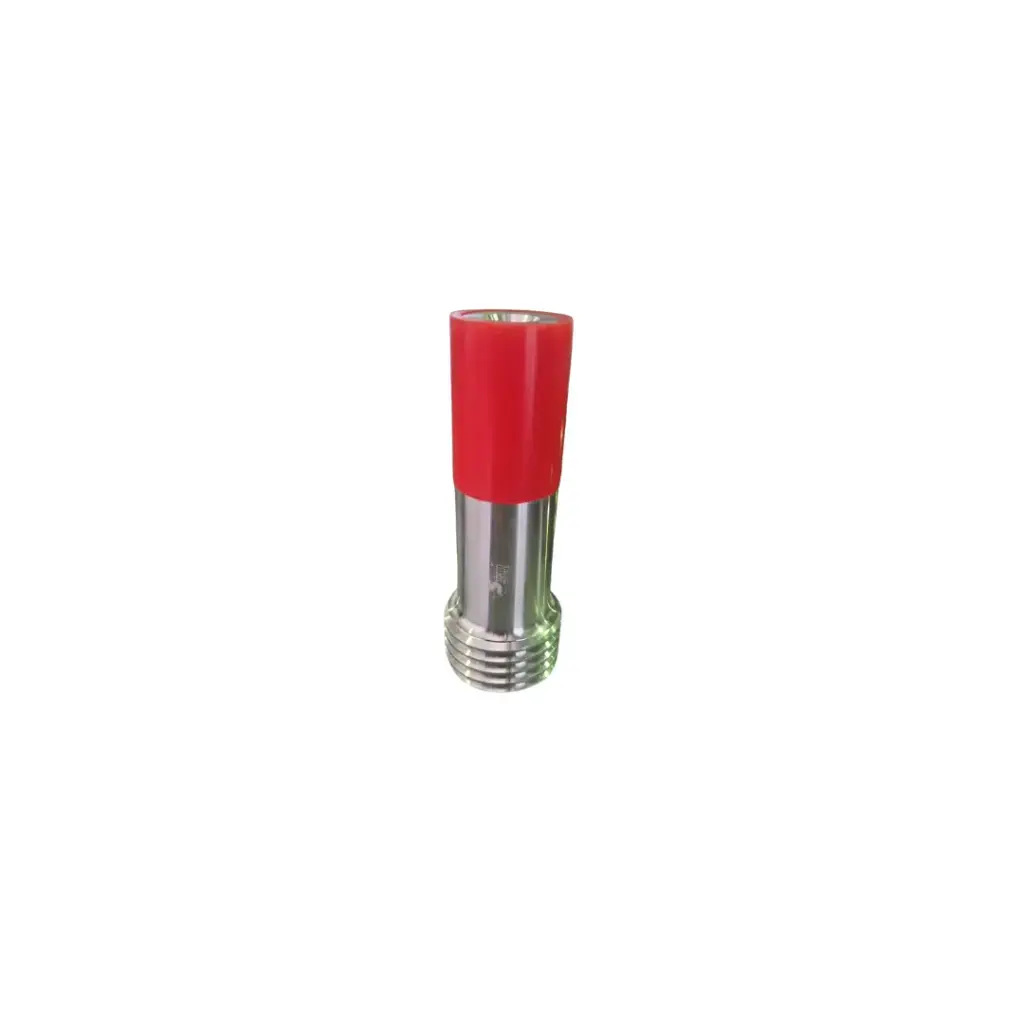

VENTURI NOZZLE - 6MM
Venturi blast nozzles standard
Standard Venturi Nozzles have an inner liner made out of ultra-fine silicon carbide. They are light in mass and will last roughly 3 times longer than tungsten carbide. Ideal for general use in abrasive blasting or when using aluminium oxide as a blasting media. Ultra-fine silicon carbide is less prone to fracture that your normal silicon carbide.
Sizes & specifications
Actual Size | Nozzle Consumption | Helmet Consumption | Total Consumption | 50% Compressor Reserve | Approximate m2/hr |
| 6.5mm | +-84 cfm | +-15 cfm | +- 100 cfm | 150 cfm | 6-8 |
| 8mm | +-134 cfm | +-15 cfm | +-150 cfm | 225 cfm | 8-10 |
| 9.5mm | +- 200 cfm | +-15 cfm | +- 215 cfm | 323 cfm | 12-14 |
| 11mm | +-254 cfm | +-15 cfm | +-270 cfm | 405 cfm | 14-17 |
| 12.5mm | +- 338 cfm | +-15 cfm | +- 335 cfm | 503 cfm | 23-25 |
