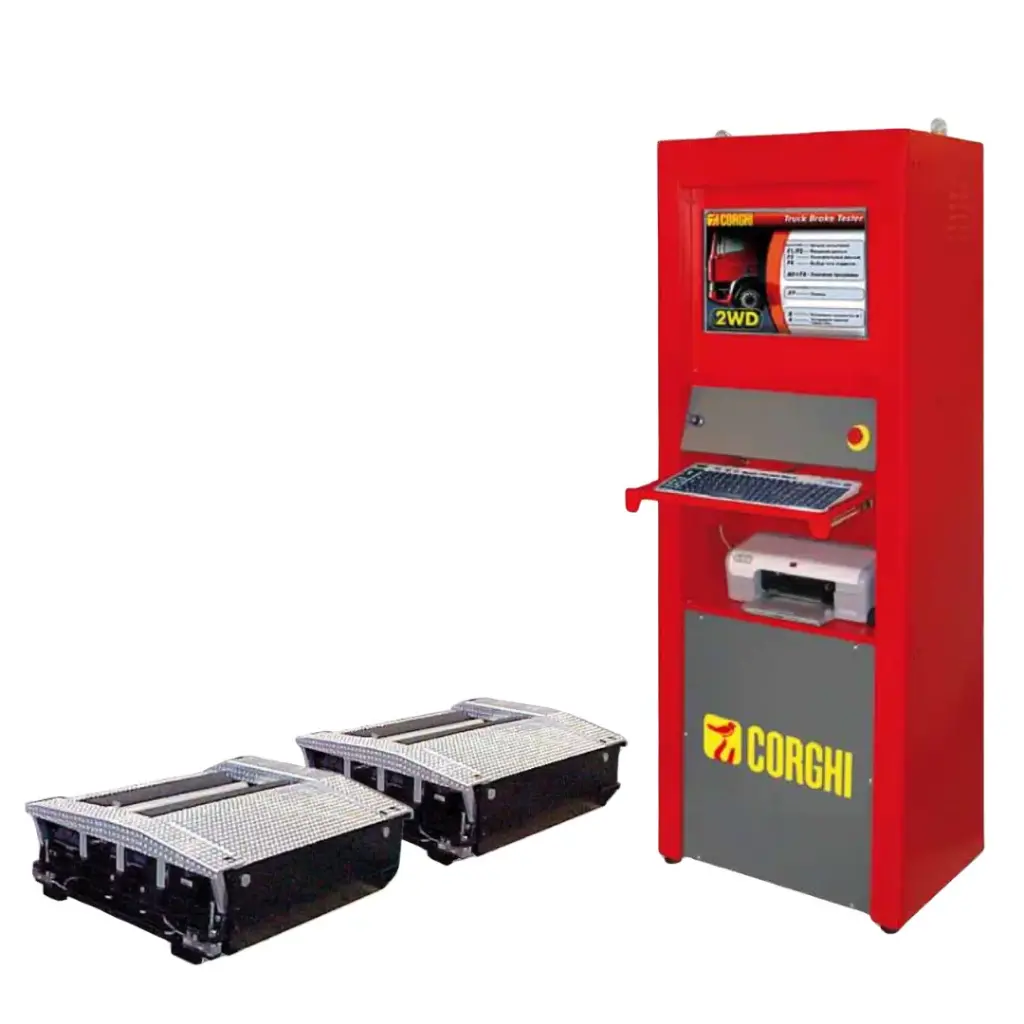

CORGHI T-BT115-2S ROLLER BRAKE TESTER FOR TRUCKS AND BUSES

Brake tester for heavy vehicles

T-BT 115-2S is designed for heavy and light vehicles (two testing speed)

Technical Data

Maximum axle load: 20t

Maximum braking force: 6 / 40 kN

Nominal testing speed: 2,2 / 5 km/h

Roller diameter: 250mm

Roller lenght: 1070mm

Roller coating  Epoxy resin with podwdered quartz

Roller fiction coefficient: ≥0,6 dry

Motor power: 2x5,5 / 15 kW

Operating temperature: 0-40°C

Power supply voltage: 400V/3Ph -230V/1 Ph/50 Hz
