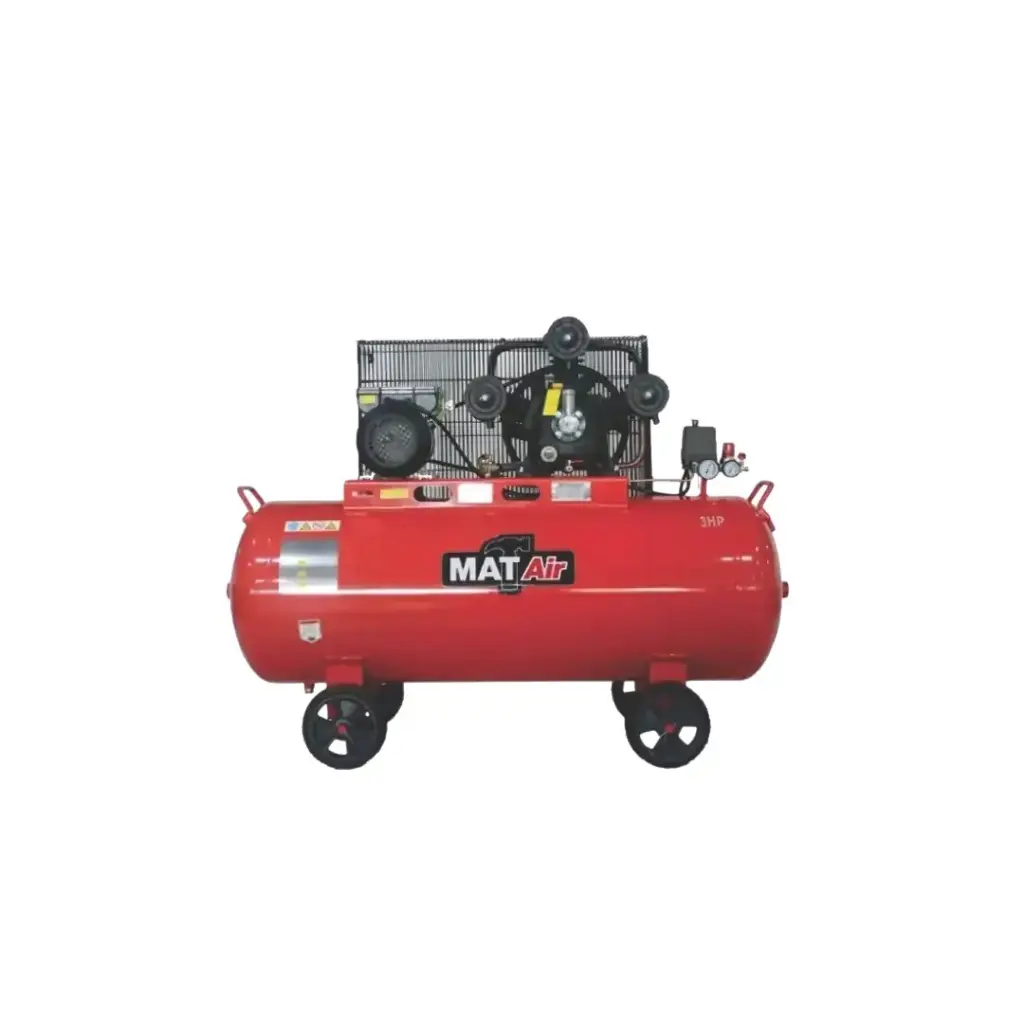

MATAIR COMPRESSOR 2.2KW/3HP/150L/ 8 BAR /8.9CFM

FEATURES
Suitable for craftsmen who need a compressor for professional use
Piston compressor three cylinder 90°W placed single stage
Splash lubrication, forced ventilation, cast iron cylinder, steel valve plate and steel valves
Overload protection of electric motor with manual reset
ON/OFF pressure Switch
Pressure reducer with two cocks
Condensate drain cock
Ball line cock

TECHNICAL DATA
Capacity (Litres): ​ ​150
Volts/Phase: ​ ​ ​220/1
HP: ​ ​ ​ ​3
KW: ​ ​ ​ ​2,2
Displacement l/Min: ​385
Displacement CFM: ​11,2
FAD L/Min: ​ ​ ​250
FAD CFM: ​ ​ ​8,9
BAR: ​ ​ ​ ​8
PSI: ​ ​ ​ ​115
RPM: ​ ​ ​ ​105
Cylinder Formation: ​2V
Weight (kg): ​ ​ ​108
