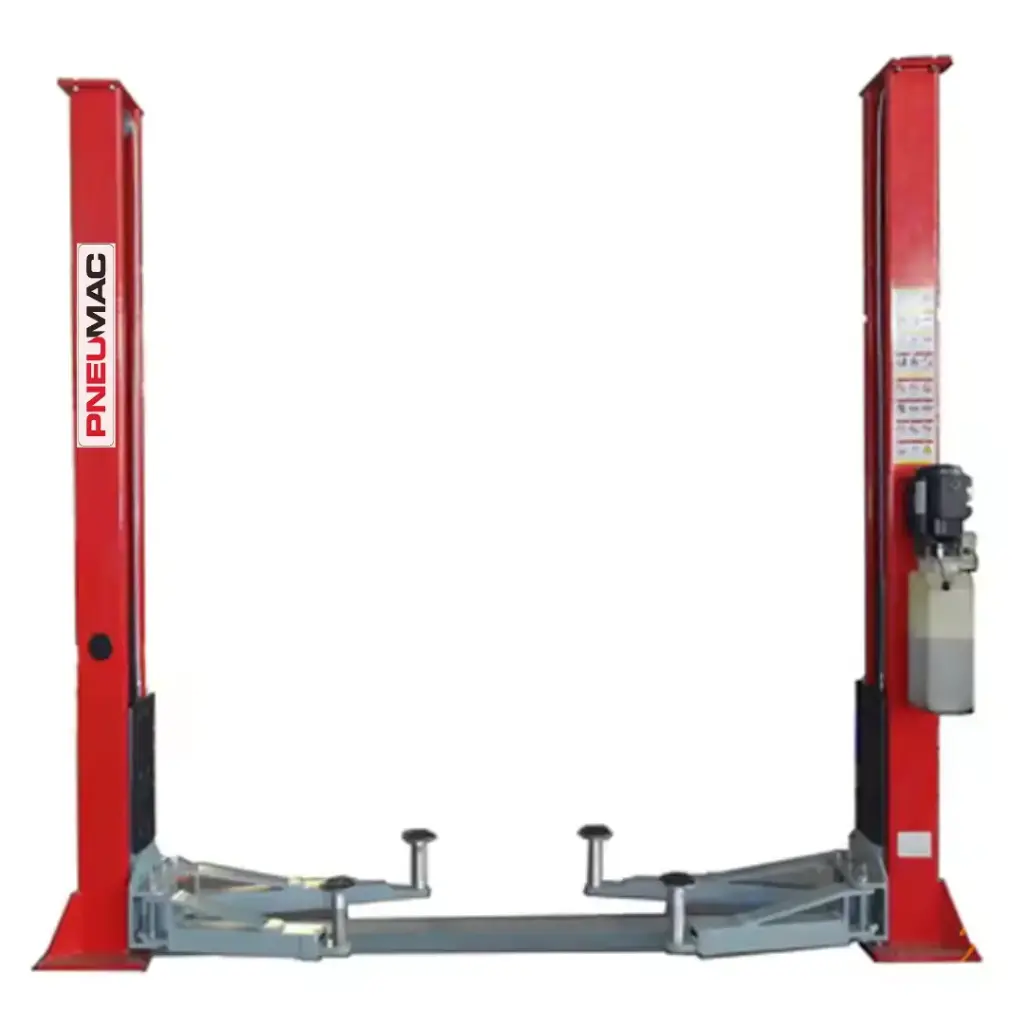

PNEUMAC HYDR BASE TYPE 2 POST LIFT 4T 220V

Description

Equalization of two steel cables forcing both sliding blocks to move synchronously, effectively and to prevent the vehicle from tilting.

• Electro-hydraulic with (2) two independent cylinders

• Cable mode synchronization system from the bottom

• Symmetrical three stages arms

TECHNICAL DATA

Capacity 4000kg

Internal distance between columns 2800mm

Maximum lifting height 1900mm

Minimum pad height 98mm

Power supply 230V 1 ph

Lifting time 50 seconds

Motor power 2,6 kW

Weight (approx) 850kg

Lift Height 3870mm
