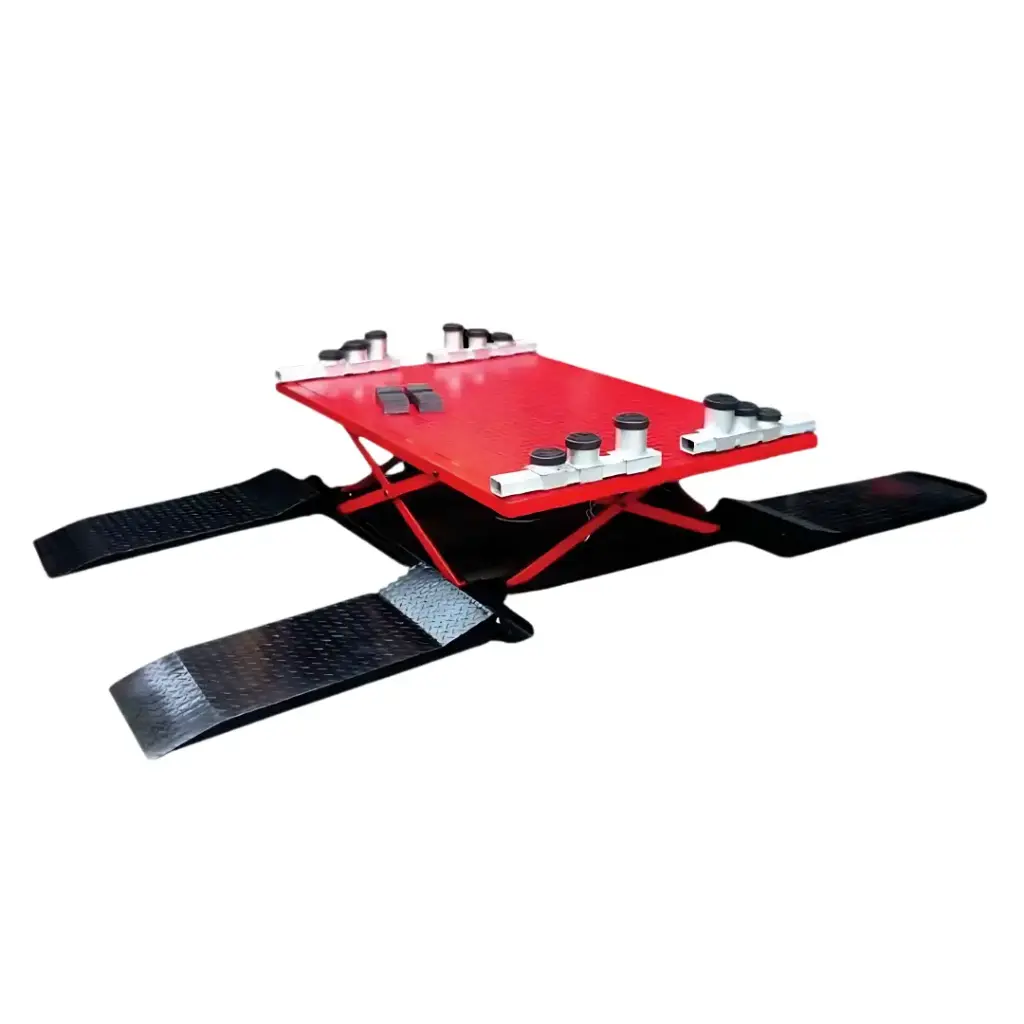

PNEUMAC AIR BELLOWS LOW LIFT 500mm with 702006 ARMS

The PneuMacHigh Rise lift is sturdy, strong and practical to use.

Designed to accommodate all vehicles from small passenger to large SUV and 4X4. Improves operator conditions when working on the wheels.

An essential tool for all tyre professionals.

The lifting strength (2700 kg)

Generated by an air spring that allows high capacity with limited pressure (maximum capacity achievable with only 7 BAR).

The heavy duty constructed full deck allows lifting at strategic points from all sides of the lift.

Optional lifting arms with three sets of lifting blocks ensure raising the vehicle from manufactures jacking points.

The two-stage configuration of the approach ramps allows lifting any vehicle, sports with low spoiler included,without touching the platform.

• ·A mechanical safety device prevents the risks of accidental vehicle falling in the event of an air pipeline breakage.
• ·A relief valve calibrated at 7 BAR limits the pressure inside the air spring to the prescribed values,relieving any excess to the atmosphere.

Technical information

Lifting capacity: 2700 kg

Max lifting height: 500 mm without arms

Min height: 115 mm

Platform length with arms extended 2300mm

Platform width 2000mm
