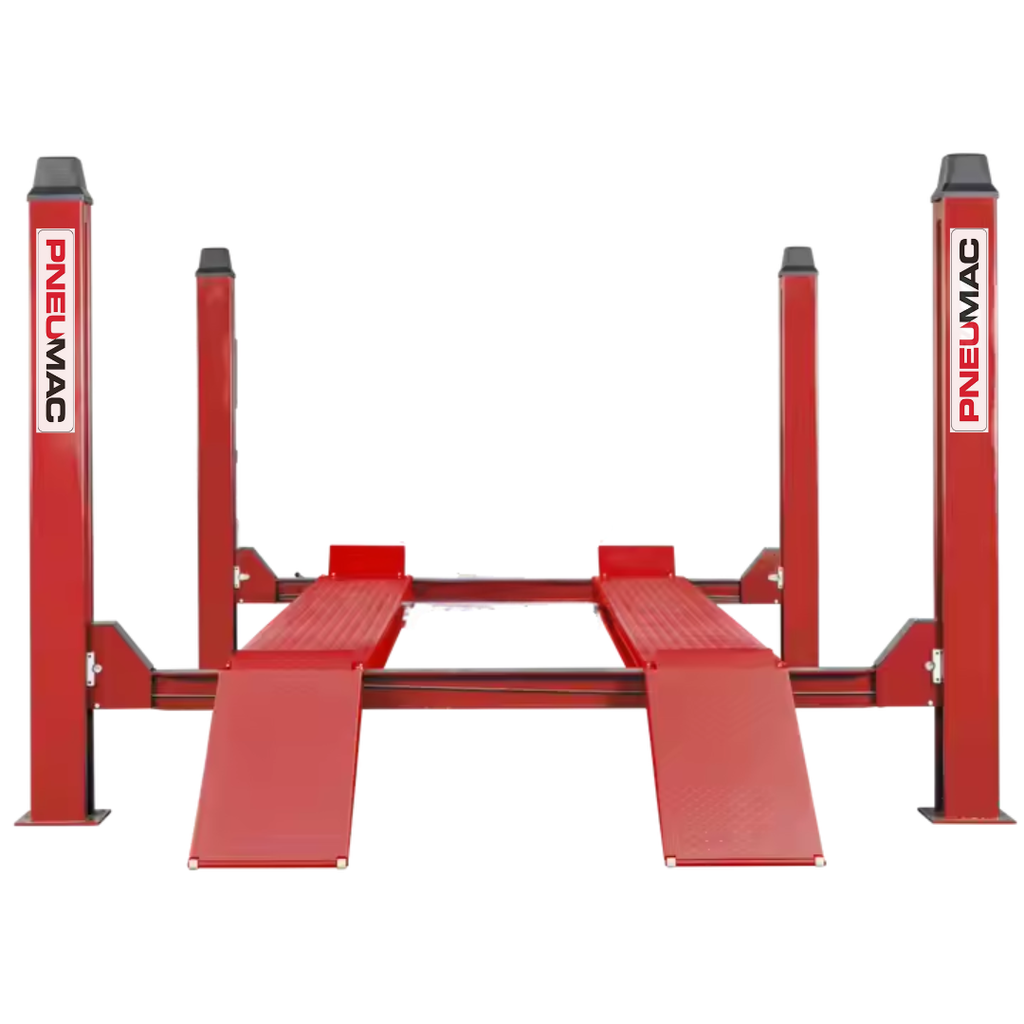

PNEUMAC 4-POST LIFT 4 TON 220V CLEAR RAMP

PRODUCT DETAIL :

1. Electro-hydraulic lift, with hydraulic cylinder located under one of the platform..

2. Low profile platforms, with short drive-on ramps, can be for 200mm when fully lowered, requires less space.

3. Platform complete steel plate without splicing, no welding, ensures durability

4. Safety rack installed in each column. Mechanical lock engaged automatically in lifting process.

5. Adjustable width between two platforms makes lift more flexible for different vehicles.

6. Low voltage control system matches CE standard.

TECHNICAL DATA

Lifting capacity 4000kg

Lifting height: 1700mm

Platform height: 200mm

Platform length: 4650mm

Electric motor power 2.2kW

Power supply 220V single phase 50-60Hz

Drive through width 2875mm

Total height of 4-post Lift 2120mm

Machine width 3395mm

Rising time 45sec

Lowering time: 45sec
