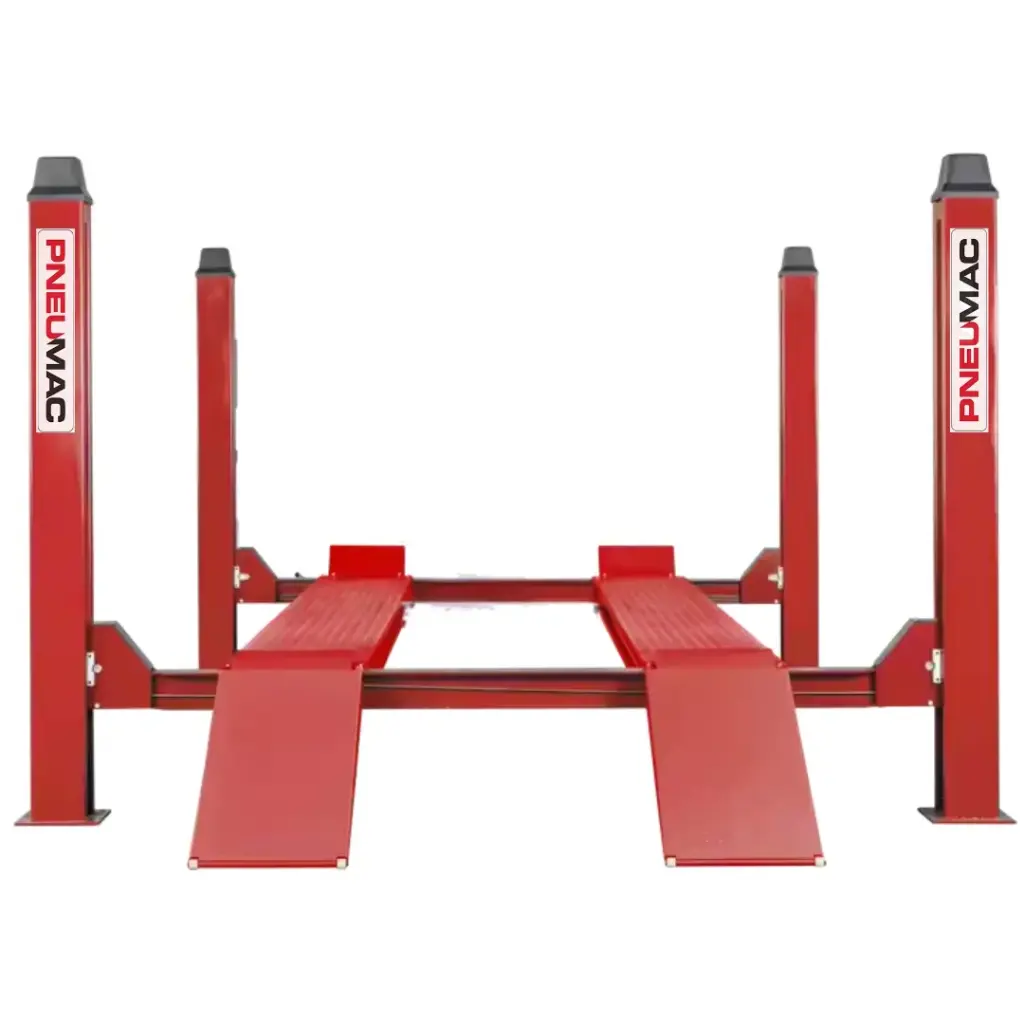

PNEUMAC 4-POST LIFT 5TON CLEAR RAMP

PRODUCT DETAIL

Electro-hydraulic lift, with hydraulic cylinder located under one of the platforms.

Low profile platforms, with short drive-on ramps, can be for 195mm when fully lowered,requires less space.

Platform complete steel plate without splicing, no welding, ensures Durability.

Safety rack installed in each column. Mechanical lock engaged automatically in liftingprocess.

Adjustable width between two platforms makes the lift more flexible for different vehicles.

Low voltage control system matches CE standard.

TECHNICAL DATA

Lifting capacity 5000 kg

Lifting height: 1700mm

Platform height: 195mm

Platform length: 5275mm

Platform width; 520mm

Total Length incl. ramps: 6200mm

Electric motor power 2.2kW

Power supply 220V single phase 50-60Hz

Drive through width 2950mm

Total height of 4-post Lift +/-2120mm

Machine width 3480mm

Rising time 55sec

Lowering time: 55sec
