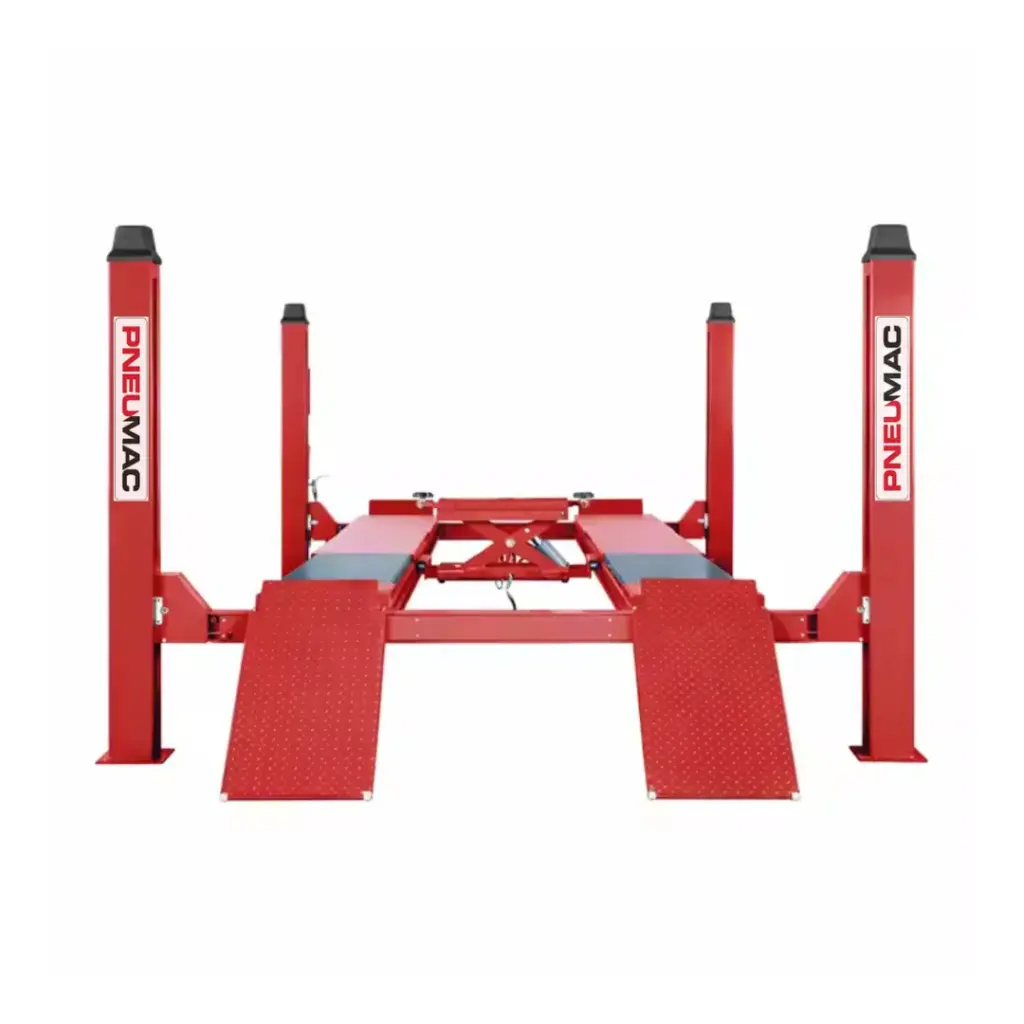

PNEUMAC 4-POST LIFT 5TON with built-in slipplates & alignment jack & Trolley included

PRODUCT DETAIL :
1. Electro-hydraulic lift, with hydraulic cylinder located under one of the platform..
2. Platform complete steel plate without splicing, no welding, ensures durability
3. Safety rack installed in each column. Mechanical lock engaged automatically in lifting process.
5. Adjustable width between two platforms makes lift more flexible for different vehicles.
6. Low voltage controle system matches CE standard.

TECHNICAL DATA
Lifting capacity ​ ​ ​ ​ ​ ​5000kg
Lifting height: ​ ​ ​ ​ ​ ​1750mm
Platform initial height: ​ ​ ​ ​ ​250mm
Platform length: ​ ​ ​ ​ ​ ​5190mm
Platform width: ​ ​ ​ ​ ​ ​530mm
Overall length including drive on ramps: ​ ​6190mm
Overall width of lift:  ​ ​ ​ ​ ​3340mm
Inside width between posts:  ​ ​ ​ ​2875mm
Rising time:    ​ ​ ​ ​ ​ ​ 45sec
Lowering time: ​ ​ ​ ​ ​ ​30sec
Electric motor power: ​ ​ ​ ​ ​1HP
Power supply: ​ ​ ​ ​ ​ ​220V single phase 50-60Hz
