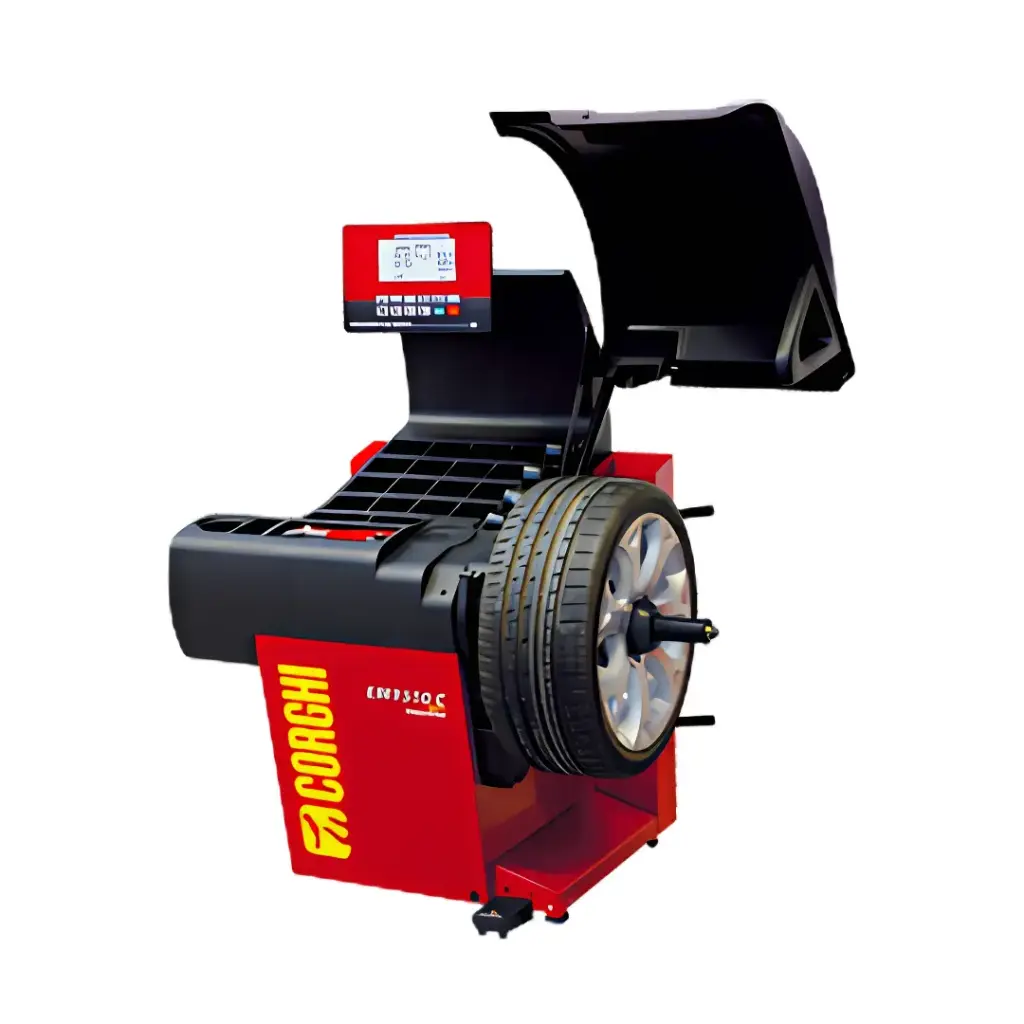

CORGHI EM9550 C LASERLINE W/BAL 220V Electric shaft Q/lock incl. wheel guard (2 year warranty) (Ex-stock Italy. Lead Time: +/- 10-14 weeks from date of order) (Replace 701130)
Wheel balancer with display and automatic wheel size detector.
Fast, accurate, reliable and easy-to-use
The automatic wheel clamping system reduces work time and increases centring accuracy
Version: Automatic wheel clamping (EM 9550C)
TECHNICAL DATA
|
Power supply voltage |
230V 1ph 50/60 Hz |
|
Total power absorption |
400 W |
|
Balancing speed |
75-85-98 rpm |
|
Maximum unbalance value |
999 g / 35,3 oz |
|
Resolution |
1 g / 0,0353 oz |
|
Average measurement time |
(14kg wheel) - 5,5 s |
|
Shaft diameter |
40 mm / 1,57" |
|
Rim width setting range |
1,5"- 20" |
|
Rim diameter setting range |
1"- 35' |
|
Rim diameter measurement range |
10"- 28" |
|
Maximum wheel width (with guard) |
600mm / 23,6" |
|
Maximum wheel diameter (with guard) |
1117 mm / 44" |
|
Maximum wheel/machine distance |
275mm / 10,82" |
|
Maximum wheel weight |
85 Kg |
|
Machine weight |
145 kg |
|
Maximum dimensions 1 x px h |
1453 x 894 x 1858 mm |
