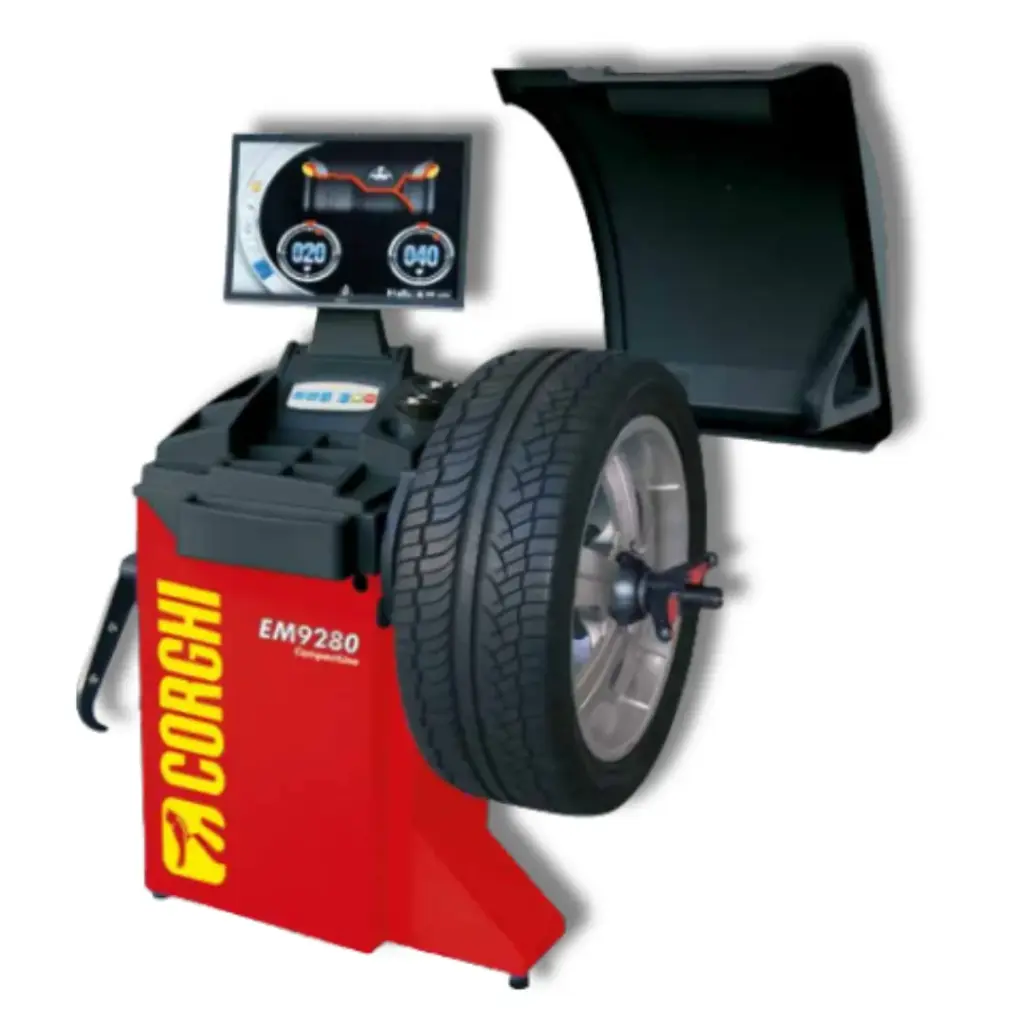

CORGHI EM9280C PREMIUM W/BAL WITH MONITOR

Balancing with monitor, compact and essential with professional performances. SMART-ARM: electronic input of wheel diameter and distance with FSP function which automatically activates the balancing programmes, avoiding keypad selection.

AWD automatic sensor (Auto width Device) for contactless measurement of wheel width.

Quickly and intuitive sensitivity calibration .

VERSIONS

• Automatic wheel clamping (EM 9280C)
• Manual wheel clamping (EM 9280)



TECHNICAL DATA

• Power supply voltage: 115/230 V – 1Ph 50/60 Hz
• Total power absorption: 122 W
• Compressed air pressure (EM9280C): 7 ÷ 10 bar (105 ÷ 165 psi)
• Spinning speed: 90 ÷ 130 rpm
• Max. unbalance value calculated: 999 g
• Unbalance measurement accuracy: 1 g (0.0353 oz)
• Average measurement time: 7 s
• Shaft diameter: 40 mm (1.57")
• Rim width setting range: 1.5" ÷ 20"
• Rim diameter setting range: 1" ÷ 35"
• Rim diameter measurement range: 10" ÷ 28"
• Maximum wheel width (with guard): 600 mm (23.6")
• Maximum wheel diameter (with guard): 1117 mm (44")
• Maximum wheel/machine distance: 275 mm (10.82")
• Maximum wheel weight (ground fastening): 85 kg
• Machine weight (without accessories): 82 kg



8022490272 HOOD. (821100232 AWD & 821100080 ARF ACCESS FOR 4X4 CENTRE WHEEL ARE OPTIONAL & NOT INCLUDED)
