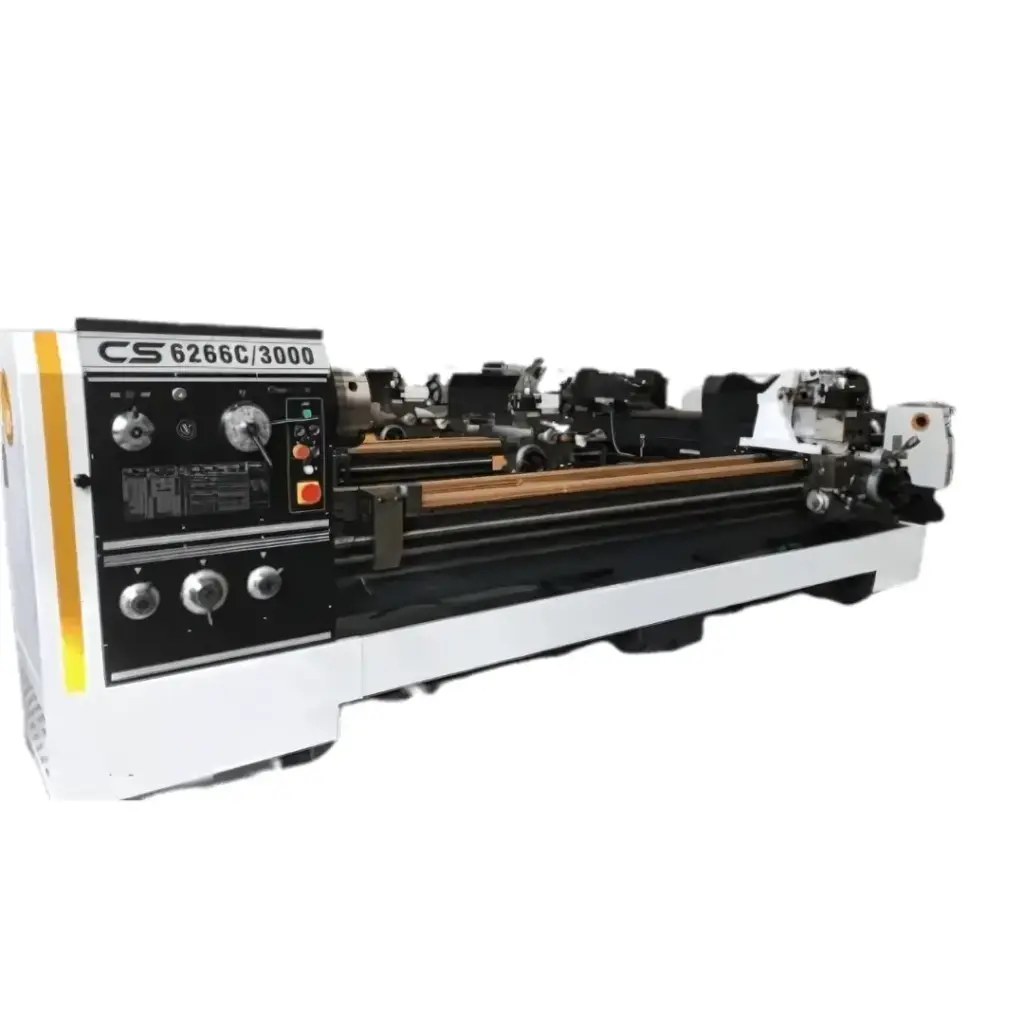

CENTRE LATHE CS6266C/3000

Description
Distance between centres: ​2000 mm
Swing over bed: ​ ​ ​660 mm
Swing over cross slide: ​ ​420 mm
Swing in the gap: ​ ​ ​870 mm
Length of gap: ​ ​ ​240 mm
Spindle nose Camlock: ​ ​D1 8
Spindle bore: ​ ​ ​ ​105 mm
Spindle Speeds: ​ ​ ​(12) 36 – 1600 RPM
Range of metric threads: ​(22) 1 – 14 mm
Range of Whitworth threads: ​(25) 20-2 T.P.I.
Range of Module Threads:    ​(18) 0.5 – 7 mm
Range of Diametral Threads: ​(24) 56  -4DP
Tailstock Taper: ​ ​ ​5 MT
Main Motor: ​ ​ ​ ​7.5 kW

Standard equipment
3-Jaw self centering chuck
4-Jaw independant chuck
Face Plate
Fixed and travelling steadies
Morse taper dead centres 2
Headstock reducing sleeve
Machine Lamp
Coolant
Rapid traverse in longitudinal and cross movement
Emergency foot brake

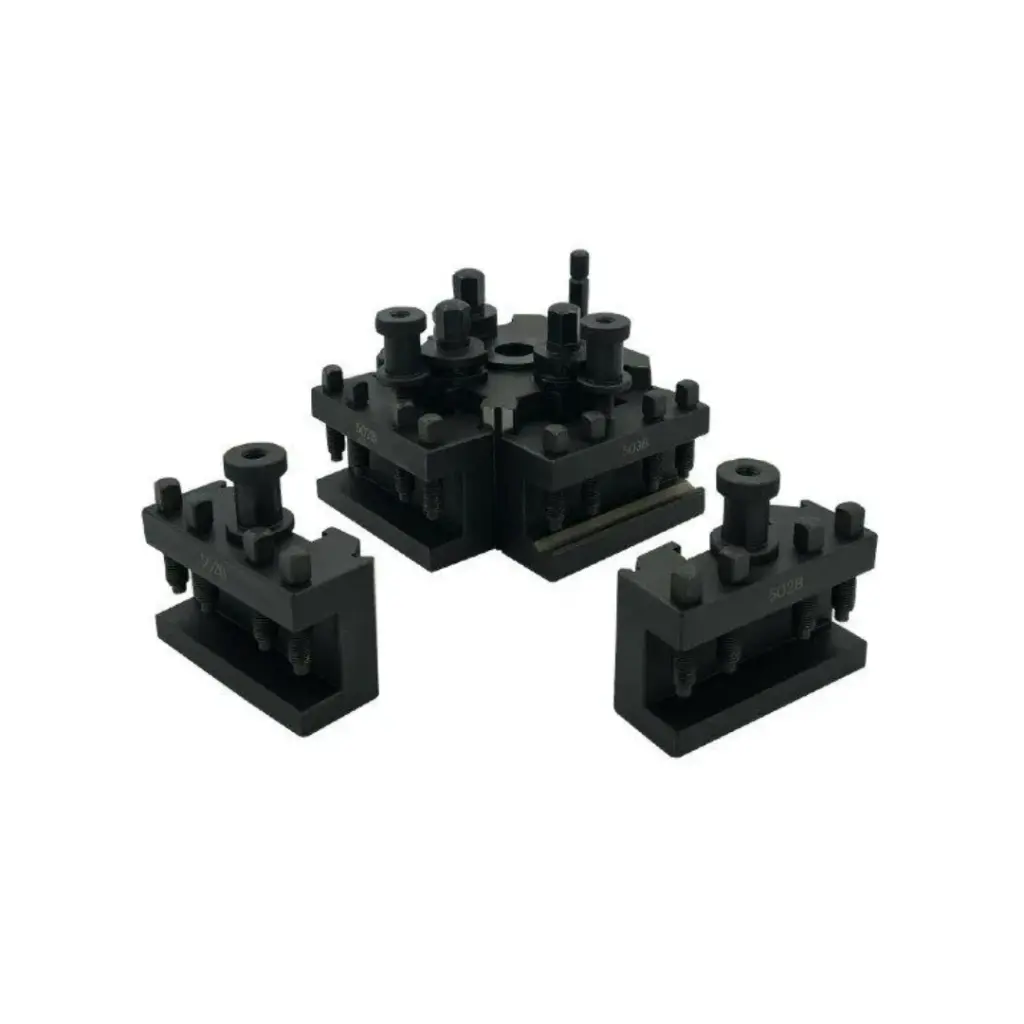

Quick Change Toolpost

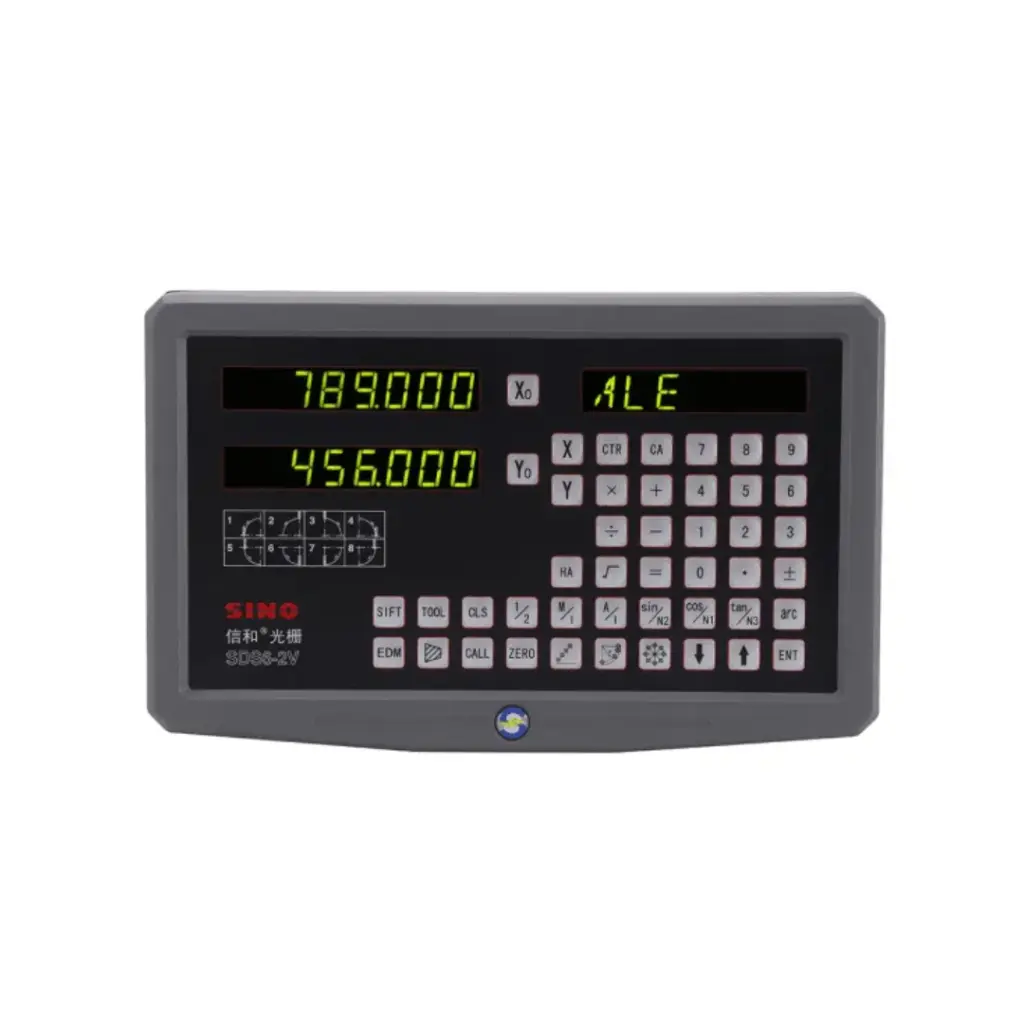

2-Axis Sino Digital Readout.
