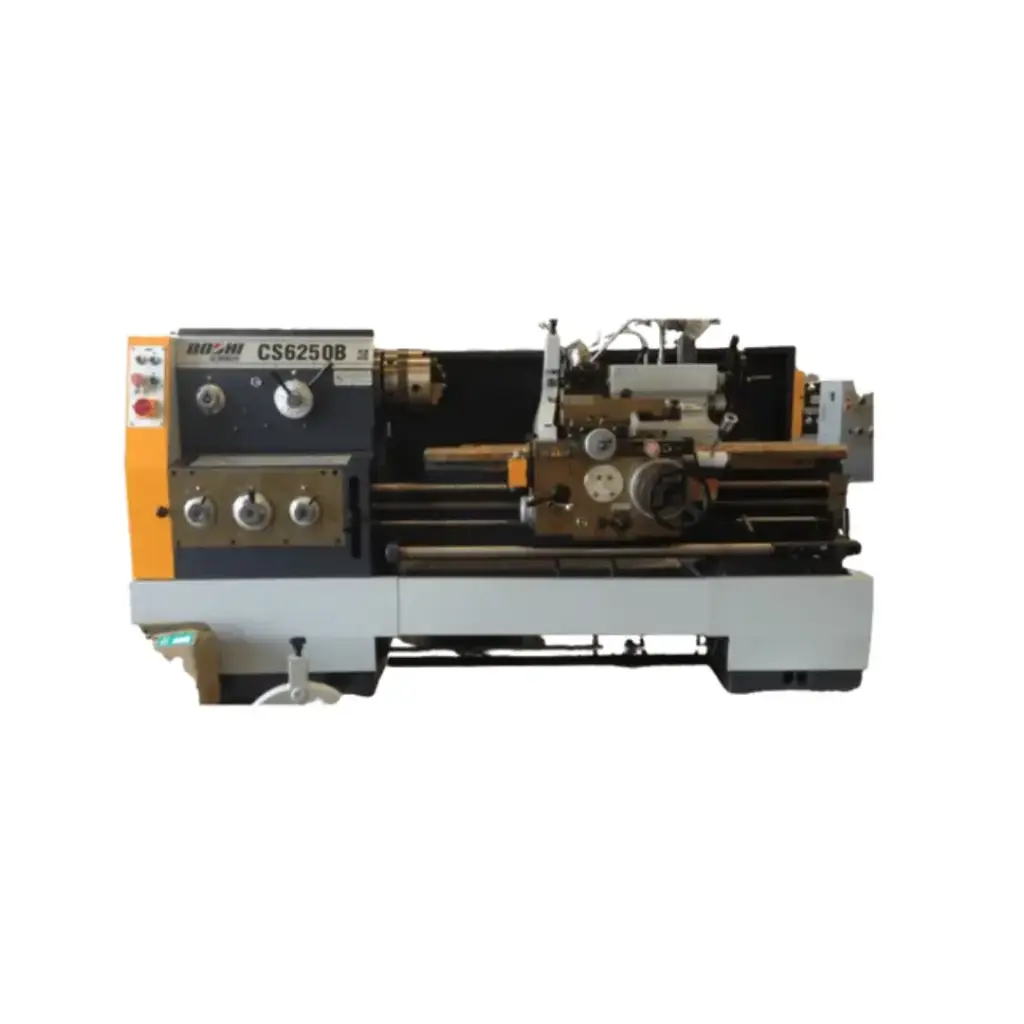

CENTRE LATHE CS6250B/1000
Description
Generally in accordance with the manufacturer’s leaflet incorporating the following main data :
Distance between centres 1000 mm
Swing over bed 500 mm
Swing over cross slide 300 mm
Swing in the gap 710 mm
Spindle nose D1/ 8
Spindle bore 82 mm
Spindle Speeds 9 – 1600 RPM
Range of metric threads 0.5 – 224 mm
Range of Whitworth threads 72 – 1/8 T.P.I.
Maximum travel of top slide 145 mm
Main Motor 7.5 kW
Standard Equipment:
3-Jaw self centering chuck
4-Jaw independent chuck
Face Plate
Fixed and travelling steadies
Machine Lamp
Coolant
Rapid traverse in longitudinal and cross movement
