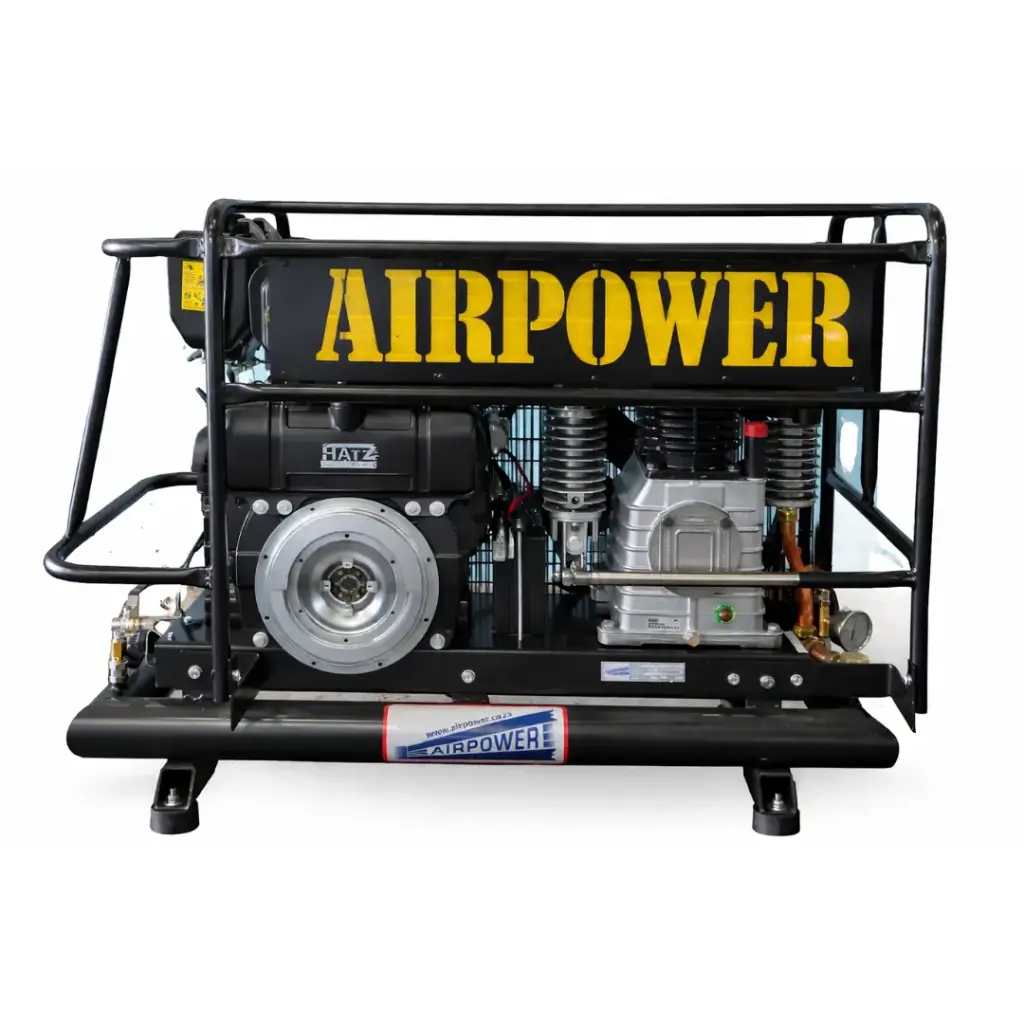

AIRPOWER AP12/30/17DE ELECTRIC START HATZ DIESEL AIR COMPRESSOR (WITHOUT BATTERY, SOLENOID DUMP VALVE & REMOTE DECOMPRESS LEVER)

Diesel compressor – 17 L
With electric start (excluding battery and cables)
Heavy duty (6–24 working hours per day)
Engine size: 11.2 kW ≈ 15 HP (at ±3000 rpm) Hatz 1D90 diesel-driven engine
Mounted on a 17 litre, 12 bar pipe air receiver

Optional:

Protection cage (8-COMPROCAGE)
Battery and battery cables (ARBATTHOLD)
Canvas protection cover (APCOMPCAN)
Remote Decompress Lever
Solenoid Dump Valve

Technical specifications:
Code: AP12/30/17DE
Pressure: 12 bar
Tank size: 17 L pipe air receiver
Air delivered: 650 L/min at 1200 kPa (sea level) | 23.21 CFM (Chinook K30 compressor block)
Engine size: 11.2 kW ≈ 15 HP (at ±3000 rpm) Hatz 1D90 diesel-driven engine

Important information:

Output decreases by approximately 1% per 100 m above sea level
Diesel engine is difficult to start with recoil start
When trailer-mounted, ensure suspension is designed to minimise vibration; overly stiff suspension can reduce compressor lifespan
