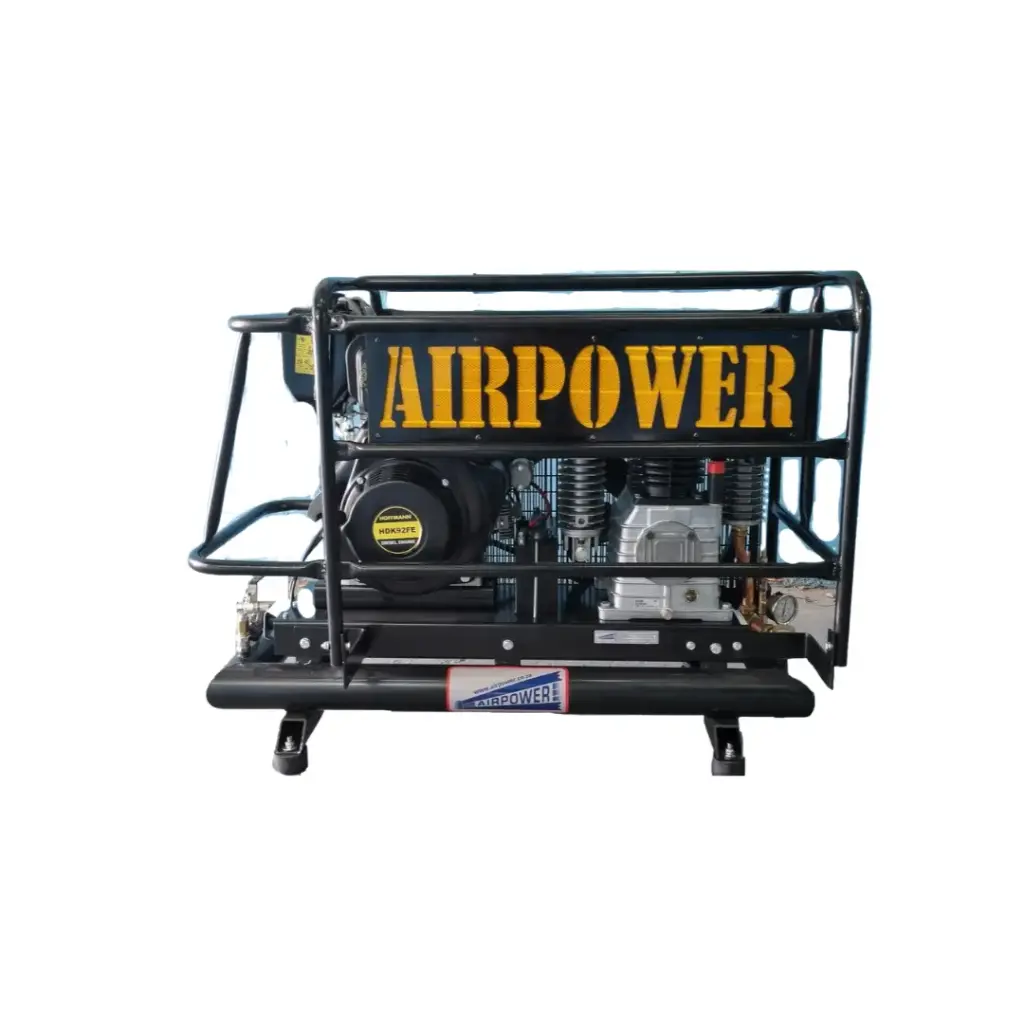

AP10/30/17DE ELECTRIC START DIESEL AIR COMPRESSOR

Diesel Compressor 17L
with electric start (Excluding battery and cables)
Heavy Duty 6 -24 working hours a day
10 hp Hoffman diesel driven engine
K30 Chinook compressor
On a 17 litre 12 bar pipe air receiver

Optional:
Protection cage optional extra. (8-COMPROCAGE)
Battery and battery cables (ARBATTHOLD)
Canvas protection cover (APCOMPCAN)

Technical Specifications:
Code: AP10/30/17DE
Pressure: 12 Bar
Tank size: 17 litre pipe air receiver.
Air delivered: 650L/min at 1200 kPa at sea level 23.21Cfm Chinook K30 compressor block
Engine size: 7.5kW 10HP Diesel Hofmann engine

Important info:
You will lose 1% output per 100 m above sea level.
The diesel engine starts difficult with a recoil start.
If mounted on a trailer, make sure the suspension is designed to minimise the vibrations on the compressor. If suspension is too hard, the compressor is not going to last.
