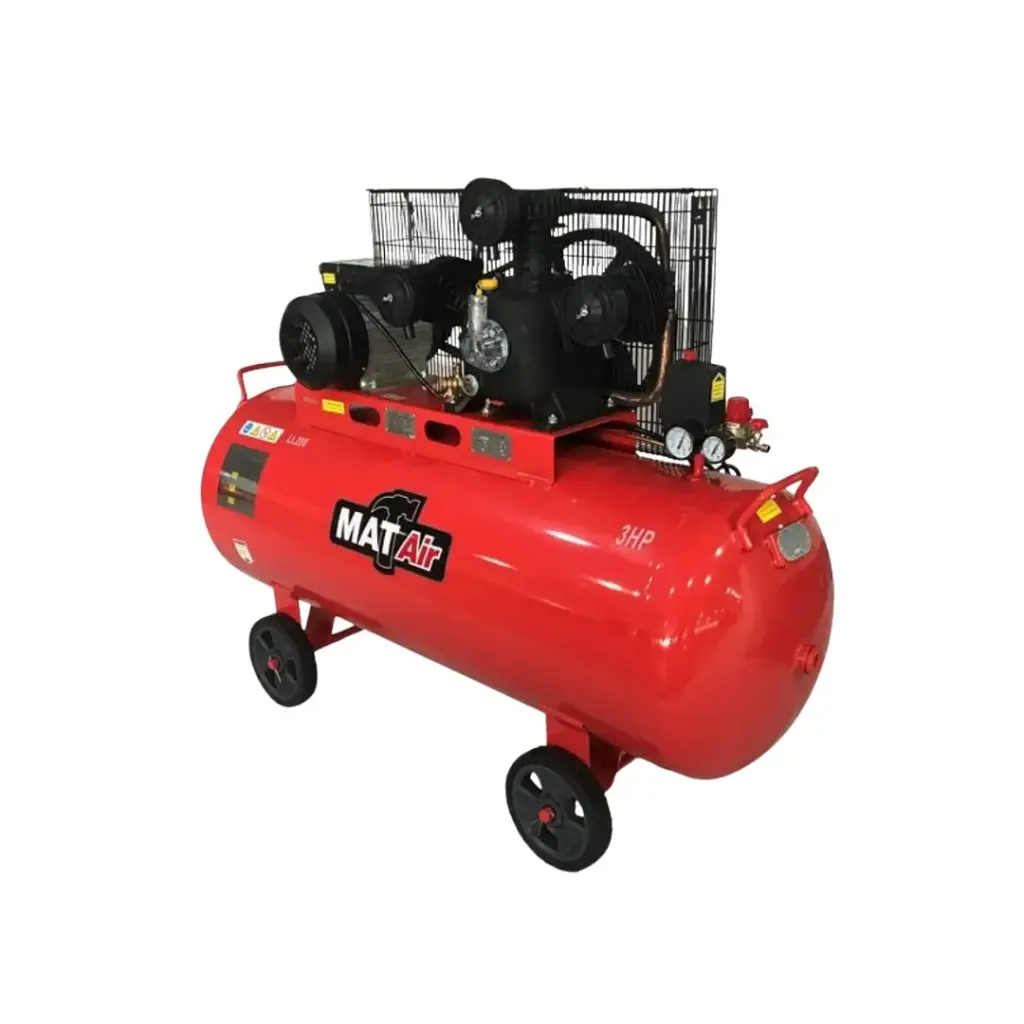

COMPRESSOR MATAIR 2.2KW/3HP 200L W/STYLE

BELT DRIVEN COMPRESSOR MATAIR 2.2KW/3HP 200 L W/STYLE

FEATURES
Suitable for craftsmen who need a compressor
for professional use
Piston compressor three cylinder 90°W placed single stage
Splash lubrication, forced ventilation, cast iron
cylinder, steel valve plate and steel valves
Overload protection of electric motor with manual reset
ON/OFF pressure Switch
Pressure reducer with two cocks
Condensate drain cock
Ball line cock

TECHNICAL DATA
Capacity (Litres): ​ ​​200
Volts/Phase: ​ ​ ​​220/1
HP: ​ ​ ​ ​​3
KW: ​ ​ ​ ​​2,2
Displacement l/Min: ​ ​385
Displacement CFM: ​ ​1​1,2
FAD L/Min: ​ ​ ​ ​250
FAD CFM: ​ ​ ​ ​8,9
BAR: ​ ​ ​ ​ ​8
PSI: ​ ​ ​ ​ ​115
RPM: ​ ​ ​ ​ ​1050
Cylinder Cylinder Formation: ​2V
Weight (kg): ​ ​ ​ ​130
