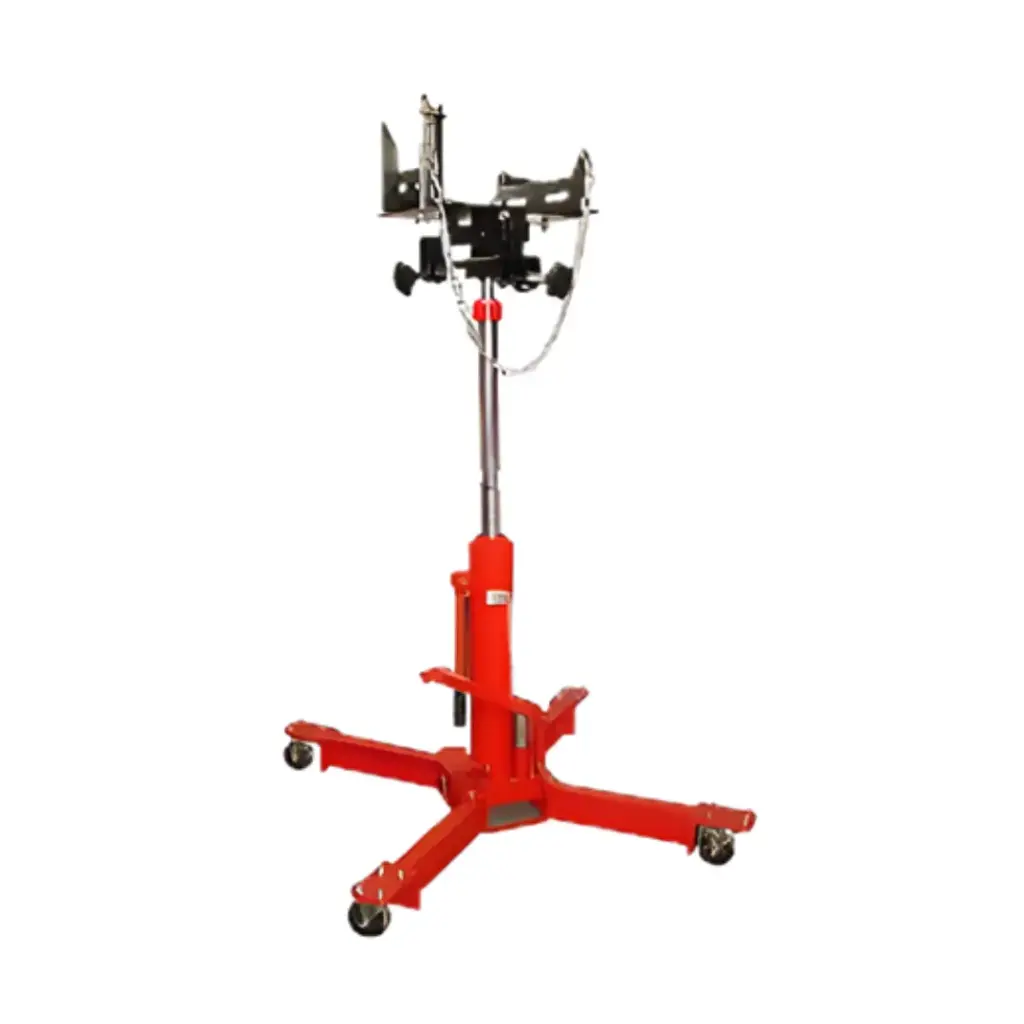

TRANSMISSION JACK PIT TYPE 1 TON 830mm-1800mm

​ ​ ​OPERATING INSTRUCTIONS

GENERALIZATION

This jack is a removal hydraulic,with the following advantage:
Compact construction
Light in weight,
Long lift range,
Fast in lift,
Agile and stable in removing, center of the load adjustable and safe and reliable etc.

It can be used when assembling and dissembling the removal parts, structal part, which need lifted, descended, transported, it's the ideal tool for assembling and repairing in motor repair shop, mobile garage.

MAIN SPECIFICATION
Rated capacity(kg) ​ ​1000
Min.height ofsaddle(mm) ​830
Max.height ofsaddle(mm) ​​1800
N.W.(kg) ​​63
Dimensions(ww) ​ ​560X370X810 ​ ​ ​ ​
Adjustable angle of saddle(°) ​ ​10
Adjustable skew of saddle(mm) ​25

MAIN CONSTRUCTION
This jack is combined by(1)power unit (2)wheelstand unit (3)saddle unit
