TIMING TOOL VAG

1.2 1.4 1.6 fsi and tfsi 1.4 tsi axu bag bkg blf bln blp

For locking, setting and adjustment of engine timing during engine/cylinder head overhaul procedures on VW and AUDI 1.2 1.4 1.6 petrol engines.

Camshaft Locking Tool: The camshaft locking tool used on the 1.2 TSi engines.

Suitable Engines:

1.2TSI-CBZA. CBZB/ 1.4T/FSI- CAXA
CAXC
CAVG/1.6 FSI- BAG
BLP
BLF

Suitable For:

Audi:
-A1/A1 Sportback (8XA/8X1)(10-15)
-A3/A3 Sportback (8PA/8P1)
-S1/S1 Sportback (8XA/8X1)

VW:
-Beetle/Coccinelle/Maggiolino (5C1/5C7)
-CC (358) http://store.gtsupplies.co.za/
Eos (1F7/1F8)
-Golf Plus (521/5M1)
-Golf V/Estate (1K1/1K5)
-Golf VI Estate (AJ5)
-Golf VI/Cabrio(5K1)
-Jetta (162/1K2)(05-14)
-Jetta (163)(14-)
-Passat (362/365)
-Passat (3C2/3C5)
-Passat CC (357)
-Polo (6R1)
-Polo (9N1/9N2/9N3)
-Scirocco (137)
-Scirocco (138)(14-)
-Sharan (7N1)
-Tiguan (5N1/5N2)
-Touran (1T1/1T2/1T3)

1.2:
-CBZA
-CBZB
-CBZC

1.4:
-AXU
-BKG
-BLG
-BLN
-BMY
-BWK
-CAVA
-CAVB
-CAVC
-CAVD
-CAVE
-CAVF
-CAVG
-CAXA
-CAXC
-CDGA
-CDMA
-CMSB
-CNVA
-CTHA
-CTHB
-CTHC
-CTHE
-CTHF
-CTHG
-CTJB
-CTJC
-CTKA
-CLP

1.6:
-BAG
-BLF
-BLP
-BTS
-CLRA
-CNKA
-CLP

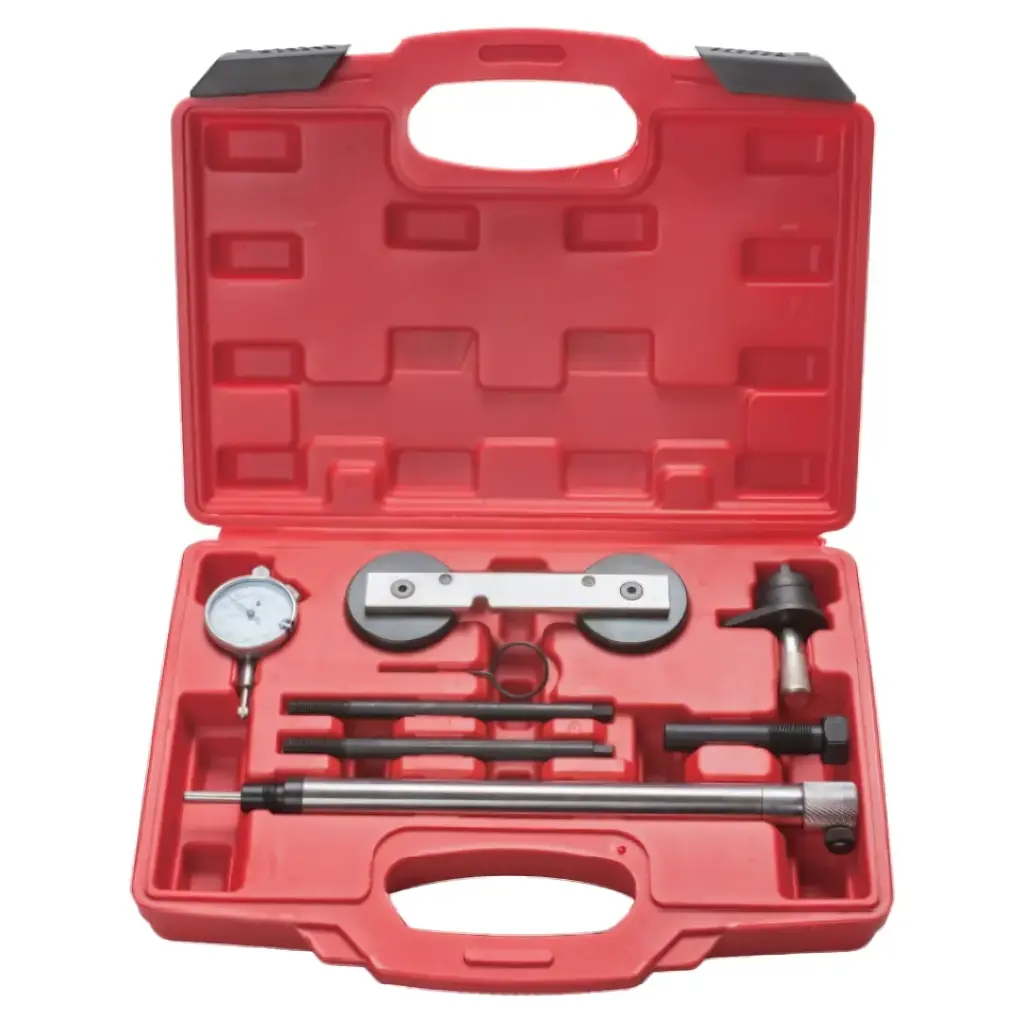

Contents:

– Camshaft Locking Tool
– TDC Indicator
– Camshaft Alignment Tool
– Tensioner Pin
– Crankshaft Locking Pin
– Guide Pins x 2pcs
– Dial Gauge

Dial Test Indicator:
Top Dead Centre (TDC) measurement must be checked, this set includes TDC Adaptor which enables the accurate measurement of the piston position.
TDC Indicator: The Indicator is fitted into the first cylinder spark plug hole.

Camshaft Alignment Tool:
If the Camshaft Timing Marks are not correctly aligned with the engine set at TDC, turn the Crankshaft 360° and check the Camshaft timing mark again.

Tensioner Pin:
Fit the tensioner locking pin to hold the chain tensioner back, allowing the removal of the camshaft sprockets and chain.

Crankshaft Locking Pin:
Use the Crankshaft Locking tool when loosening and tightening the crank.

Guide Pins:
The two guide pins hold the supercharger in the correct position during installation.

OE: T10170, T10171A, T40011, T10340, T10414, T10341, T20046, VAS6079
