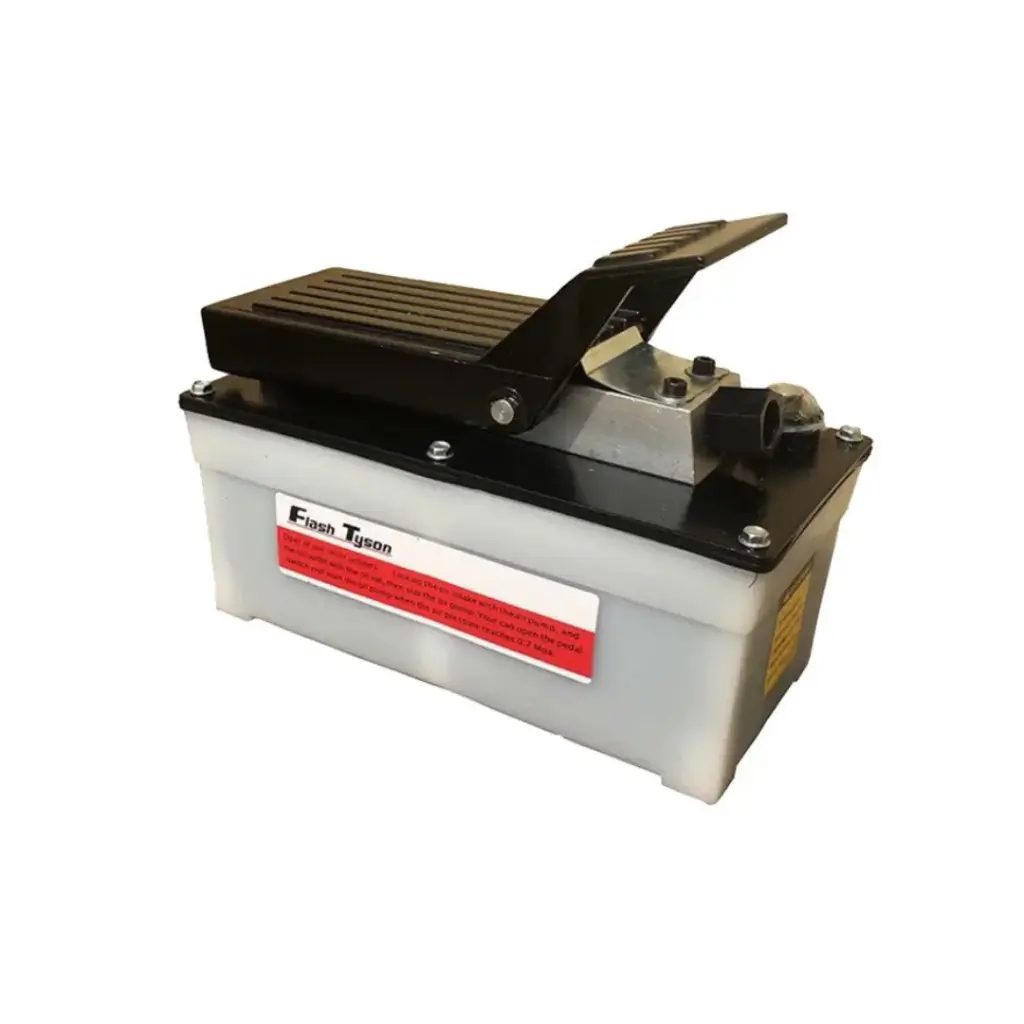

FLASH TYSON D-LEAP FOOT PUMP

Here’s what this Flash Tyson foot pump is and its typical specs — it’s an air-driven hydraulic pump used in auto-body shops, frame machines, and hydraulic pulling systems.

What it does
•⁠  ⁠Air hydraulic foot pedal design for hands-free operation 2b83
•⁠  ⁠Works with single-acting cylinders 3dab
•⁠  ⁠You press the pedal to pump, release to return fluid 7fae

Typical specifications (Flash Tyson / similar 10,000 PSI models)
•⁠  ⁠Max pressure: 10,000 PSI (70 MPa / 700 bar) 2b83
•⁠  ⁠Input air pressure: 100–150 PSI (0.7–1 MPa / 7–10.5 bar) 3dab — your label mentions starting at 0.7 MPa, which matches this
•⁠  ⁠Oil capacity: ∼1.6 L (98 cu in / 0.42 gal) 7fae
•⁠  ⁠Max oil output: ∼1.3 L 7fae
•⁠  ⁠Flow rate: ∼0.8 L/min (0.21 gal/min) 7fae
•⁠  ⁠Air connection: 1/4" NPT 7fae
•⁠  ⁠Hydraulic outlet: 3/8" NPT 3dab
•⁠  ⁠Oil type: HM22/HM32 hydraulic oil 7fae
•⁠  ⁠Shell material: Reinforced aluminum alloy 7fae

Applications
•⁠  ⁠Auto body repair shops, collision repair, frame machine operations, hydraulic pulling systems, vehicle straightening 2b83

Operation notes (from label)
•⁠  ⁠Link the air intake to the air pump, then open the pedal switch and start when air pressure reaches 0.7 MPa (as printed on your unit).

It’s basically a workshop-grade foot pump: you connect shop air (around 100 PSI), hook the hydraulic hose to your cylinder/tool, and use the pedal to build up to 10,000 PSI without using your hands.
