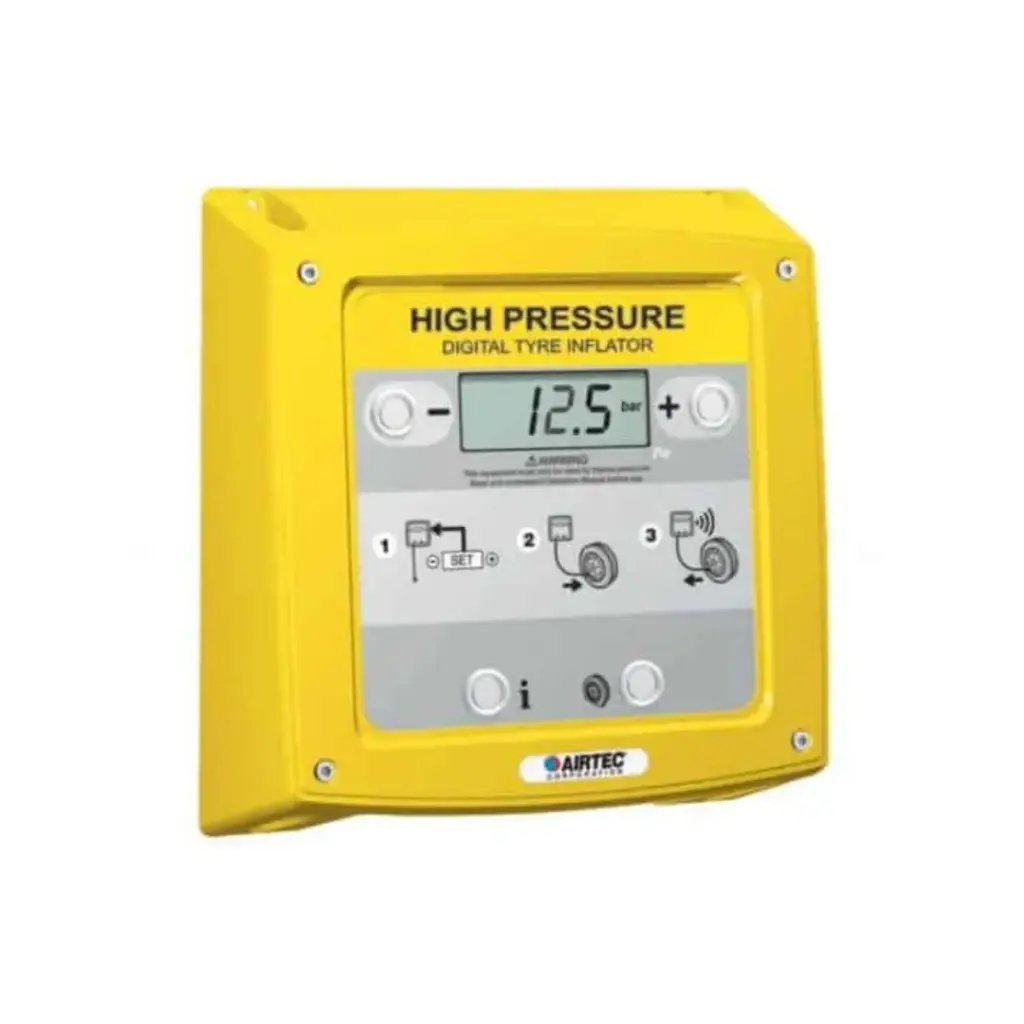

WALL GAUGE AIRTEC XHB HIGH PRESSURE/FLOW 1/2 YELL"

The XHB is an enhanced version of XDB for customers looking for a higher inflation pressure of a maximum of 12.5 bar / 182 psi. The XHB High-Pressure Digital Tyre Inflator incorporates a high flow ½” valve capable of delivering in excess of 4,000 liters/min (141 cfm) at a maximum of 12.5 bar / 182 psi pressure. The heavy-duty, weatherproof, and vandal-resistant enclosure makes it an ideal choice for any indoor or outdoor application. Used with a 4-way manifold kit, XHB is able to inflate multiple tyres simultaneously.

High flow and high-pressure inflation up to 12.5 bar / 182 psi

Rugged and durable IP66-rated diecast aluminum enclosure

Suitable for use with standard or large bore valves and core extraction tools

Technical Specifications:

Construction Diecast aluminum wall enclosure (IP66)

Dimension 269 W x 285 H x 106 D mm

Power requirements 220V-240VAC (optional 12VDC or 100~120VAC)

Units of measurement psi / kPa / bar / kg/cm²

Operating range 5-182 psi / 35-1250 kPa / 0.3-12.5 bar / 0.4-12.7 kg/cm²

Accuracy +/- 0.5% FS
