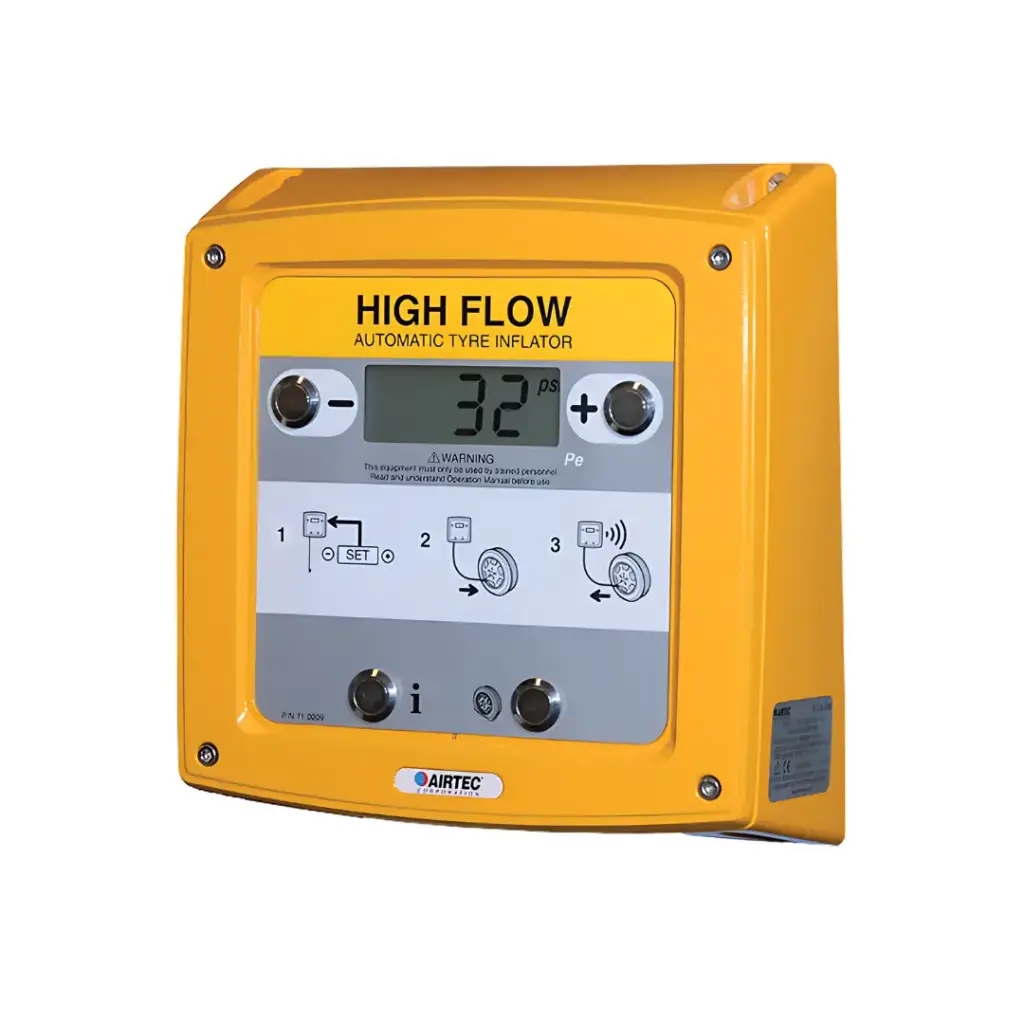

WALL GAUGE AIRTEC XDB HIGHFLOW 1/2" (without pipe)

The XDB Automatic Tyre Inflator incorporates a high flow ½” valve capable of delivering in excess of 4,000 liters/min (141 cfm) at a maximum of 10 bar / 145 psi pressure. The heavy-duty, weatherproof, and vandal-resistant enclosure makes it an ideal choice for any indoor or outdoor application which requires a high flow rate. Used with a 4-way manifold kit, XDB is able to inflate multiple tyres simultaneously, maximizing inflation productivity. It is available in a dual-display model, XDE.

High flow and high-pressure inflation up to 145 psi / 10 bar

Rugged and durable IP66-rated diecast aluminum enclosure

Suitable for use with standard or large bore valves and core extraction tools

Technical Specifications:

Construction Diecast aluminum wall enclosure (IP66)

Dimension 269 W x 285 H x 106 D mm

Power requirements 220V-240VAC (optional 12VDC or 100~120VAC)

Units of measurement psi / kPa / bar / kg/cm²

Operating range 5-145 psi / 35-1000 kPa / 0.3-10.0 bar / 0.4-10.2 kg/cm²

Accuracy +/- 0.5% FS
