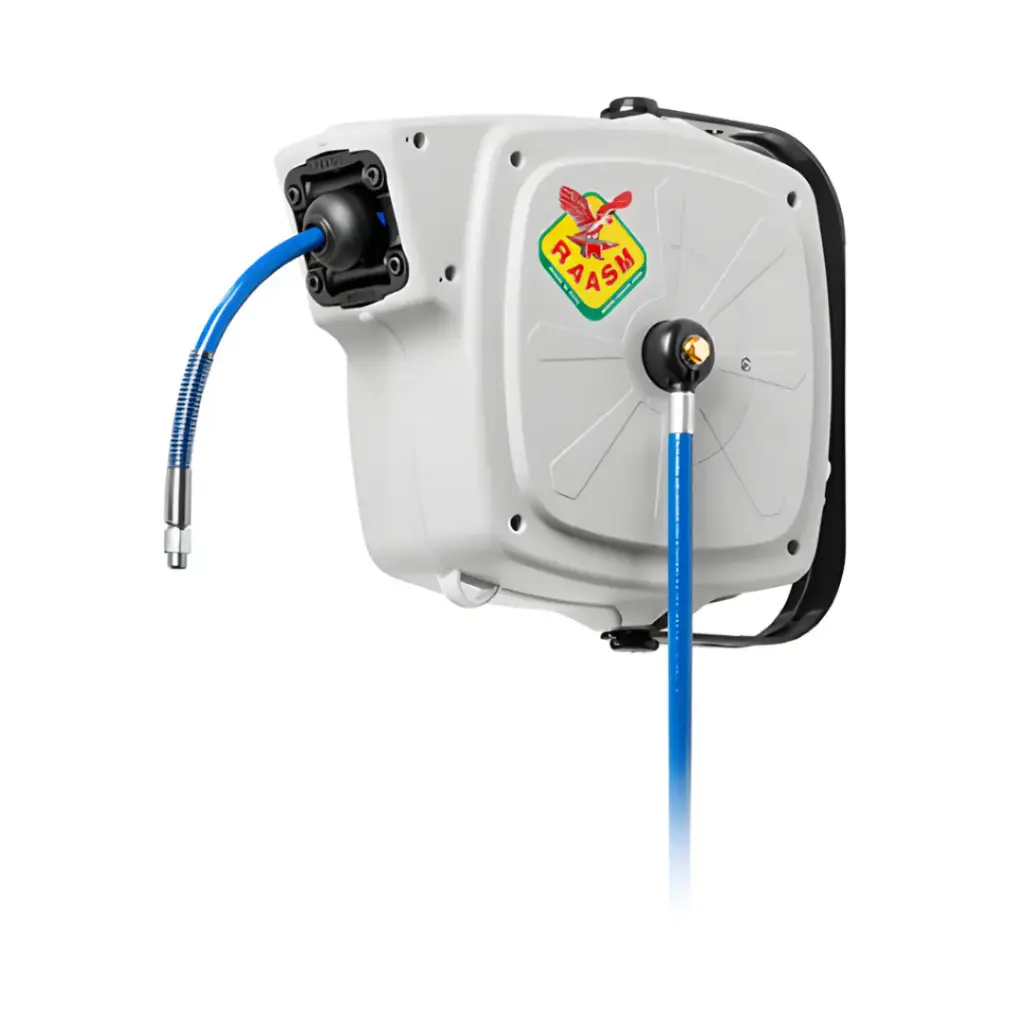

RAASM 11M 8MM AIR/WATER HOSE REEL

Enclosed hose reels with polyurethane hose

Enclosed plastic antishock hose reel with swivelling support s.280 for air-water 20 bar with hose 10 m ø 8 x 12 mm

Fluids: antifreeze | air | water | nitrogen/inflating use | cleaning detergent

Sectors: aeronautic | agriculture | automotive | lube truck and industrial vehicle | cleaning | building industry and road construction | railway transport | chemical industry | manufacturing industry | mining | shipping and offshore

Features ​ ​ ​ ​UM ​ ​ ​Value

Pressure ​ ​ ​ ​bar ​ ​ ​20

Compatible fluids ​ ​ ​ ​ ​ ​air - water 40°C

Environment temperature ​°C ​ ​ ​-5 ÷ +40

Hose ​ ​ ​ ​ ​P/N ​ ​ ​971.110

Inlet ​ ​ ​ ​ ​ ​ ​ ​G 3/8" (m)

Outlet ​ ​ ​ ​ ​ ​ ​ ​G 1/4" (m)

Min/Max hose temperature ​°C ​ ​ ​-15 ÷ +65

Rewinding clutch ​ ​ ​ ​ ​ ​-

Bayonet bracket ​ ​ ​ ​ ​ ​-

Packing ​ ​ ​ ​ ​N° - m³ ​ ​1 - 0,043

Gross weight ​ ​ ​ ​kg ​ ​ ​6 ÷ 7,9
